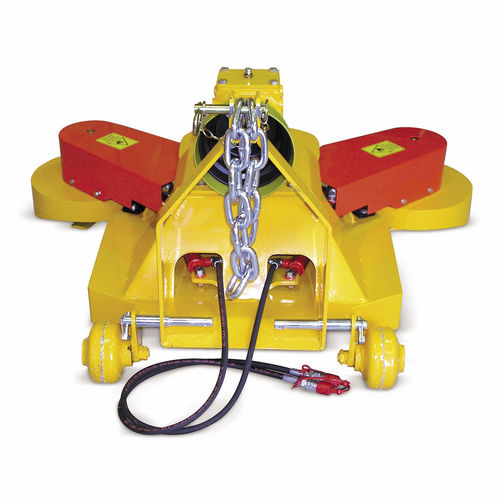

Mounted mower DR Series

flailPTO-drivengrass

Standard equipment and key features: Light and low shears mulcher with two lateral inter-row wheels to vary the cutting width and to cut the grass in the lane and between the plants in a single passage. STANDARD EQUIPMENT AND ADVANTAGES • Compact and light structure with two inter-row wheels • Mechanic inter-row wheels, rotating with rubber protection ring, with return spring, gliding discs (free on bearings) freely movable (up and down) for optimal adaptation to terrain irregularity • Transmission on the two inter-row arms with belts • Transmission on the basic machine by gearboxes • Basic machine with two counter-rotating cutter spindle rotors • Safety rubber discs for connection between the gearboxes and the cutter spindle rotors • Gearbox adjustment 750 RPM • Grass distribution bilateral to the tree row (distribution of grass towards the carriageway on request) • Deflectors in sheet metal on both sides to allow the side discharge of the product • Front rollers and large rear roller (Ø 170 mm), height adjustable for ease of sliding and manoeuvring • Frame of three-point linkage category 1 (cat. 2 on request) - FIXED CENTRAL • Third point with floating chain to allow the machine to perfectly follow the ground • Machine attached behind the tractor and used in trail (front mounting or for tractors with reverse drive on request - indicate RPM and direction of rotation PTO) • Safety-protections and “CE” certification
