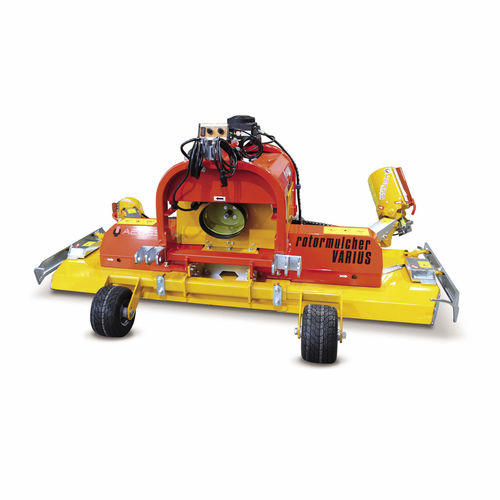

Agricultural rotary cutter RMV Series
rear-mountPTO-drivenchain

agricultural rotary cutter
agricultural rotary cutter
Add to favorites
Compare this product


Characteristics

Applications
agricultural
Mounting
rear-mount
Other characteristics
PTO-driven, chain, weeding, mechanical

Description

Standard equipment and key features: Width adjustable grass cutter, compact, extra SHORT and robust, transmission through gearboxes with wires rotors AEDES “BioSystem” BILATERAL for mechanical/ecological weeding in “ORGANIC” orchards and vineyards. STANDARD EQUIPMENT AND ADVANTAGES • Extra short and robust construction, hydraulic width is adjustable for cutting the grass in the row and under the row, bilateral weeding in a single passage • Base length reduced to the minimum, the machine is very short to optimise manoeuvrability in tight turnaround • Transmission by gearboxes • Rubber safety device for gearbox connection • Gearbox with integrated free wheel - adjustment 540 RPM (750/1000 RPM on request) • Inter-row bilateral arm with wires rotor AEDES “BioSystem” • Mechanical movement - with retraction spring • Electrical oil cooler 12 V • Rotors with special wires (PU 6 mm - reinforced) • Hydraulic cylinders for tilt of the wires rotors • Transmission to the wires rotors by hydraulic motor • Front rollers and large rear roller, height adjustable • Adjustable track width (carriageway) of the front rollers • Frame of three-point linkage category 1 and 2 - FIXED CENTRAL • Third point with floating chain to allow the machine to perfectly follow the ground • Machine attached behind the tractor and used in trail • Safety-protections and “CE” certification

VIDEO
