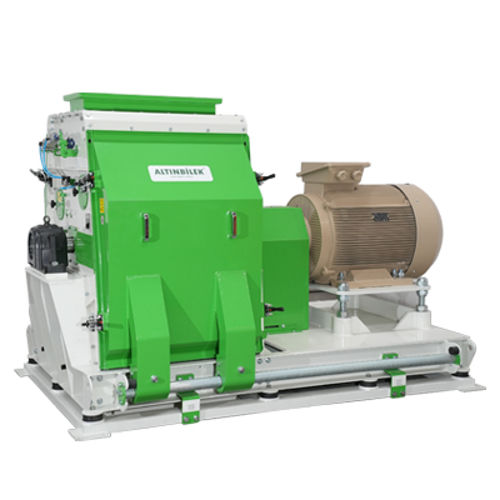

Hammer mill CD series

grainstationary

ALTINBILEK Hammer Mills are produced in a wide variety of capacities depending on the needs. Hammer mills are machines that grind raw materials or rations in the desired particle size by crushing with the help of metal blades called hammers, which are mounted on the main rotor. Rotor rotation direction of Altınbilek Hammer Mills can be changed depending on the wear condition of the hammers. There is an electro-pneumatically controlled flap system in the entrance of the hammer mill to direct the raw material depending on the rotation direction of the rotor. The raw materials entering the hammer mill hit the special plates made of manganese alloy steel on both sides with the first hit of the hammer. These plates are specially processed on the latest system milling machines and their surfaces are hardened by heat treatment in order to facilitate grinding. The crash plates on Altınbilek Hammer Mills are designed in a modular structure. Since it is modular, it can be easily changed and significantly contributes to the mill's grinding capacity. Surface hardness is increased by the application of heat treatment in the mill hammers, which are the most effective part of the crushing process, and the grinding process is provided at high capacities. Each corner of the rectangular mill hammers can be used separately. There are additional shaft gaps in the rotors of Altınbilek Hammer Mills. In the process of changing the direction of the hammers, it is possible, with the help of additional shaft gaps on the rotor to change the direction of each of them by maintaining their current position.
