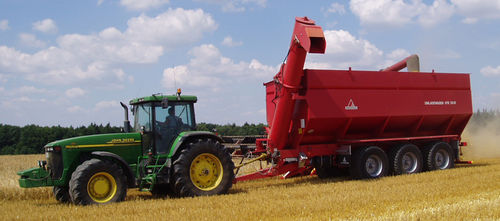

Chaser bin HTS 16 series
2-axle3-axlegrain

chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
Add to favorites
Compare this product


Characteristics

Construction
chaser bin
Number of axles
2-axle, 3-axle
Application
grain
Payload
20 ton, 22 tons, 21 ton, 23 ton, 33 ton, 29 ton
Other characteristic
harvesting, self-unloading, swing-arm, single-auger
Load volume

25 m³, 28 m³, 33 m³, 36 m³
(882.867 ft³, 988.811 ft³, 1,165.384 ft³, 1,271.328 ft³)

Description

ANNABURGER chaser bins guarantee a high daily output, enabling combine harvesters to work without interruption. ANNABURGER chaser bins – the grain harvest specialists. When selecting a chaser bin, it is important to take into account not only the throughput capacity and bunker volume of the combine harvester but also the prevailing field conditions. The benefits depend on choosing the right performance class. ANNABURGER chaser bins are designed for universal use and are also suitable for filling seeders and fertiliser spreaders. ANNABURGER chaser bins can be fitted with an additional hydraulic drive to reload granulate and fertilisers. They have a reload capacity of 100 kg to 500 kg. DETAILS ANNABURGER chaser bins – technology at the highest level. The hydraulically folding grain auger is driven by a PTO shaft at 1000 rpm. It is directly connected to the trough auger in order to ensure consistent material delivery. With a diameter of 550 mm, the grain auger has a reload capacity of 15 m³/min. The horizontal auger of the ANNABURGER chaser bin has a drive that can be infinitely adjusted by means of hydraulics. The floor has two hydraulically actuated cleaning openings. The material flow can be regulated by adjusting the flaps in the chaser bin body and adapted to suit the vehicle load. The material flows from the trough auger into the reloading auger.
