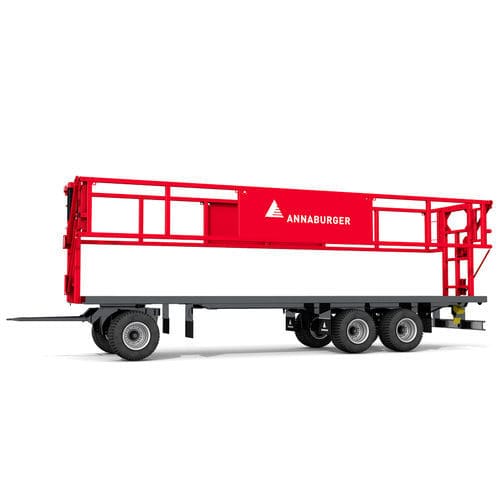

Flatbed trailer HT 24.05
3-axleagriculturalfor bales

flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
Add to favorites
Compare this product


Characteristics

Construction
flatbed
Number of axles
3-axle
Application
agricultural, for bales
Payload
24 ton
Brake system
with hydraulic braking
Other characteristic
side-unloading

Description

Innovative load securing system with hydraulic transport locking module. The ANNABURGER HT 24.05 bale transport trailer is a special tractor-towed trailer for transporting round and square straw, hay and silage bales. The load is secured by means of a hydraulically actuated transport locking module. The vehicle therefore satisfies all applicable legal regulations on securing loads during the transport of goods on public roads. The load securing device saves a huge amount of time, as it is no longer necessary to attach a large number of individual lifting straps. Fast and safe bale handling is the primary task of the ANNABURGER HT 24.05 bale transport trailer. The chassis of the HT 24.05 is equipped with a parabolic suspension and axles from well-known manufacturers. The transport locking module is activated and deactivated hydraulically from the tractor. The bale transport trailer can be moved further along while it is being loaded without having to operate the transport locking module. It can be folded to the left or right in the direction of travel or on both sides.
