Orchard harvest trolley Tecnofruit CF-105
self-propelled

orchard harvest trolley
orchard harvest trolley
Add to favorites
Compare this product


Characteristics

Application
orchard
Mobility
self-propelled

Description

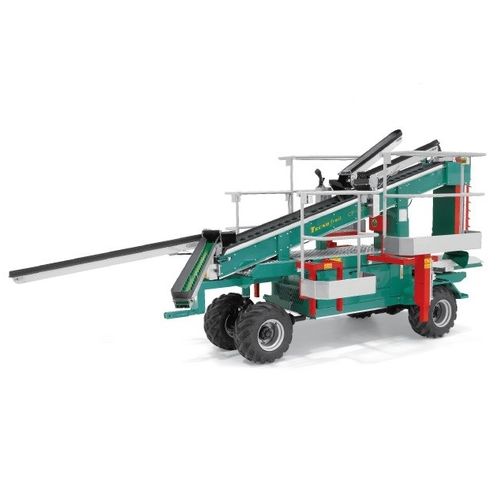

A compact machine for row distances from 3,00 to 4,00 metres and plant heights to a maximum of 3,60 metres. The generous standard equipment and a complete range of accessories allow the machine to be adapted to the individual needs of modern fruit growers. Equipped with a reliable 3-cylinder diesel engine, it has a fuel consumption and emission level in accordance with the TIER 4 norm. The four lateral platforms (back: 1,25 x 0,36 metres, front: 0,80 x 0,36 metres) permit picking at three picking levels in a very compact machine. As many as six persons can work comfortably at the same time without getting in each other’s way and in compliance with the highest ergonomic standards. Optional is the choice of an automatic trailer (offloading the full fruit containers onto the trailer) or a non-automatic trailer (offloading the full fruit containers onto the ground) which is particularly suited to very narrow or very short rows. Moreover an optional air compressor is available for 4 to 5 pruning shears. Technical data Engine:Kubota 3 cyl Type - Diesel:18.5 Kw/ 24,8 hp Front wheels:26x12.00-12 8 pr Rear wheels:26x12.00-12 8 pr Service brake - - Emergency brake/Parking brake:Hydraulic negative Diesel tank capacity:40 lt Hydraulic oil tank capacity:90 lt Aux power :12 V - 15 A Speed:0-8 km/h Speed range:2 + 2 with inversor Transmission:Hydrostatic Steering control:Joystick Lenght (without bins trailer) mm:4.180 Width (min/max) mm:1.800/3.000 Height (min/max) mm:2.418/2.910 Wheel base mm:2.205 Ground clearance mm:170 Tourning radius m:3,80 Weight kg:2.060
