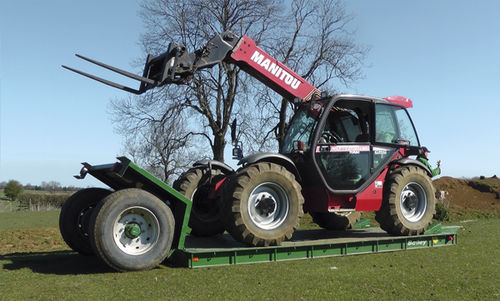

Flatbed trailer LOW Series
single-axleagriculturalwith hydraulic braking

flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
Add to favorites
Compare this product


Characteristics

Construction
flatbed
Number of axles
single-axle
Application
agricultural
Brake system
with hydraulic braking
Other characteristic
equipment

Description

Drop Deck We’ve designed our range of Low Loader trailers so that the bed of the trailer lowers to the ground to enable easy, quick and simple loading of implements, small crawlers and drills. The bed on the single axle model is raised and lowered via two large tipping cylinders at the rear and by a tractor pickup hitch at the front. Available in 8 tonne capacities. Standard features Lights to RTA, independent hydraulic brakes, parking brakes, rope hooks, 40 mm EN8 towing eye, skid & skid carrier, chequer plate floor, chain bars, loading ramps, mud guards, LED lights, 385/65 R22.5 tyres on 90 mm 8 stud wheels. Optional extras Tyres options, length/width as required, high speed axles, steering axle, hydraulic jack, timber floor, hydraulic ramps, wooden beaver tail, swing out outriggers, side guards. Beavertail/flat deck Beavertail low loaders are available in 15 & 20 tonnes and are mounted on tandem or trindem springs. Features include: spring assisted 900 mm wide loading ramps, 38 mm hardwood planed floor, fully road legal lights, commercial axles and wheels are standard. All models are 2500 mm/8’2” overall width, with addition of outriggers if required. The flat deck low loader is built to the same specification as the beavertail, but is flat to the back and comes with aluminium loading ramps complete with a storage rack underneath. Standard features Lights to RTA, independent hydraulic brakes, parking brakes, strap points, 40 mm EN8 towing eye, skid & skid carrier, hardwood floor, lashing rings in the floor, commercial axles, loading ramps, toolbox, LED lights, number plate holder, sprung drawbar, beacon.
