Gravity separator
grainwith pre-cleaner

gravity separator
gravity separator
gravity separator
gravity separator
gravity separator
Add to favorites
Compare this product


Characteristics

Applications
grain
Type
gravity
Other characteristics
with pre-cleaner

Description

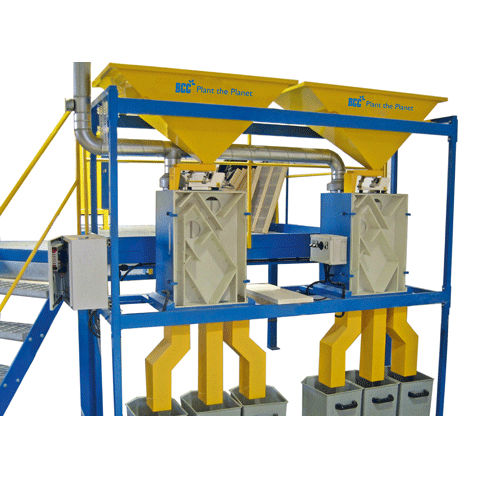

After cleaning and sizing of the seed lot, empty and partially developed seed is separated from fully developed seed. Final cleaning is also done in this process, removing light impurities and dust from the seed lot. This larger model Gravity Separator can be combined into a set, which can consist of up to four units. This configuration is often used in large seed processing plants where high volume separation operations are required. SPECIFICATIONS Dimensions (L x W x H): Master 1200 x 800 x 2400 mm Master + 1xS 2400 x 800 x 2400 mm Weight: Master 125kg Master + 1xS 250kg Power supply: 1 x 230V, 50 Hz Power requirement: single fan 0.3 kW per unit double fan 0,6 kW per unit Collection containers: 3 units per gravity separator plus one extra per complete station Seed hopper capacity: approximately 100 liters Maximum production capacity: up to 15kg/hour
