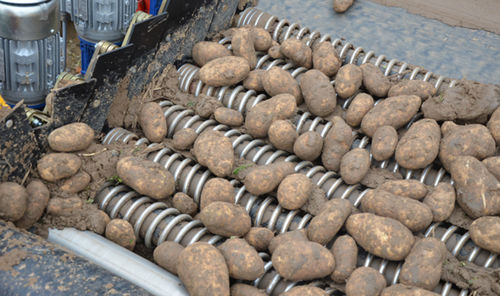

Potato crop cleaning machine BS series

rotary drum

With the outer spiral, Bijlsma Hercules introduces a completely new cleaning principle. This principle uses a spiral roller with a stationary heart. As a result, tare no longer has a chance to start on the core of the spiral roller and the cleaning result will always be optimal. This cleaner is equipped with a direct drive per roll. As a result, slip and wear are kept to a minimum, so a long product lifespan is guaranteed. In addition, the spiral rollers are equipped with a special scraper, which can be used when the product is dirty. The product cleaner is available as standard in versions with 7 rollers, but can be expanded with additional rollers for a higher cleaning capacity. Combining several cleaning beds one after the other is also possible with this version. STANDARD EQUIPPED WITH .Drive through motors and reducers per roller (0,75 kW per shaft). .Soil- and crop conveyor (on the product cleaners with a working width starting from 1.600 mm), equipped with convex drums and a belt guiding system for optimal control. .Discharge conveyors with double directive, so unloading at the left or right side of the machine can be easily set. .Stepless adjustable drop from 5 - 59 mm by means of a hydraulic hand pump unit or hand spindle. .Bearing of the rollers by means of industrial bearings, which can be easily replaced from the outside for maintenance and replacement. .Simply adjustable slope of the cleaning system. .Possibility to (afterwards) to incorporate a continental web, thus increasing the cleaning capacity of the unit and to create a possibility for sorting. .Suspension of the rollers by means of a proper scissor construction. .BLC Line Module System.
