Chaser bin
tandem axlegrain10 t ... 20 t

chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
Add to favorites
Compare this product


Characteristics

Construction
chaser bin
Number of axles
tandem axle
Application
grain
Payload
10 t ... 20 t
Other characteristic
self-unloading, PTO
Empty weight

3,600 kg, 5,000 kg
(7,936.6 lb, 11,023.1 lb)

Recommended power

Min.: 74 kW
(100.6 hp)

Max.: 100 kW
(136 hp)

Load volume

15,000 l, 18,000 l
(3,962.581 gal, 4,755.097 gal)

Loading case lenght

4,270 mm, 4,780 mm
(168.1 in, 188.2 in)

Loading case width

2,550 mm
(100.4 in)

Description

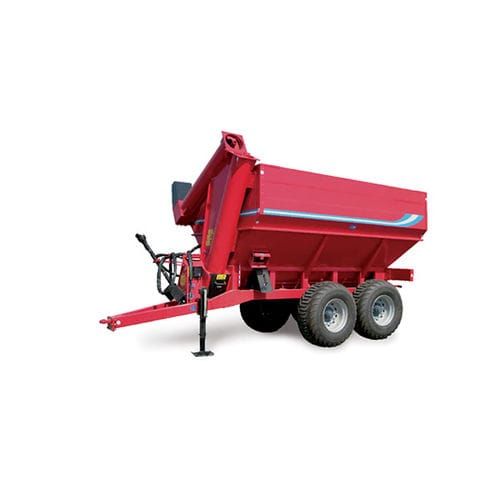

Boschi Grain 15000 and Boschi Grain 20500 Machines for grain transporting and unloading. Thanks to auger wagon, it’s possible to take full advantage of the high performance offered by baggers and bag unloaders without being limited by the conventional means of transport. Technical features: Boschi Grain 15000 Drive system PTO shaft Tractor Minimum Power (100 – 120 CV) 74 – 88 kW PTO shaft speed 540 r.p.m. Type of products Any kind of grain Capacity 15.000 lt Maximum Load 12.500 kg Unloading auger diameter 340 mm Unloading capability 230 Ton/h Total weight 3.600 kg Boschi Grain 20500 Drive system PTO shaft Tractor Minimum Power (120-140 CV) 88 – 100 kW PTO shaft speed 540 r.p.m. Type of products Any kind of grain Capacity 20.500 lt Maximum Load 15.000 kg Unloading auger diameter 420 mm Unloading capability 250 Ton/h Total weight 5.000 kg
