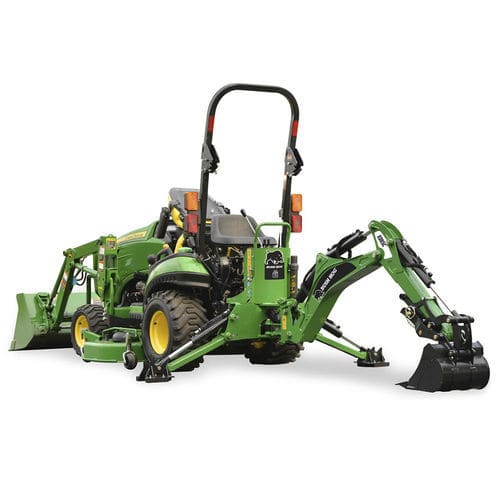

Tractor backhoe XD65C
hydraulic

tractor backhoe
tractor backhoe
Add to favorites
Compare this product


Characteristics

Utilization
for tractors
Other characteristic
hydraulic

Description

Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation. PERFORMANCE FEATURES •Digging Depth (2 ft. flat bottom): 6’4” •Overall Operating Height (fully raised): 91” •Reach from Swing Post: 100” •Bucket Rotation: 180° •Swing Arc: 150° SAFETY FEATURES •Stabilizer Width: 72” SPECIFICATIONS TRANSPORT HEIGHT (WITH BOOM FULLY RETRACTED) 64.5” TRANSPORT WIDTH (WITH STABILIZERS UP) 41” LOADING HEIGHT (BUCKET AT 60° ROTATION) 62” GROUND CLEARANCE 8 1/2” TRANSPORT LENGTH 56” TRANSPORT WEIGHT (BASE UNIT ONLY – NO BUCKET OR MOUNTS) 500 LBS. DIGGING DEPTH (2 FT. FLAT BOTTOM) 6’4” OVERALL OPERATING HEIGHT (FULLY RAISED) 91” REACH FROM SWING POST 100” BUCKET ROTATION 180° SWING ARC 150° STABILIZER WIDTH (SPREAD) 72” STABILIZER WIDTH (TRANSPORT) 41” OPERATING PRESSURE 1800 PSI SAE* DIPPER BOOM DIGGING FORCE 1250 LBS. SAE* BUCKET DIGGING FORCE 2054 LBS. BOOM LIFT CAPACITY (END OF DIPPER 3’ FROM GROUND) 250 LBS. HYDRAULIC VOLUME REQUIREMENTS 3½-6 GPM* FLOW DIVIDER – RECOMMENDED TRACTOR HP 18-28 HP RECOMMENDED SKIDSTEER REQUIREMENTS MINI SKIDSTEER BUCKET SIZES AVAILABLE 9, 12, 15, 18 3 POINT HITCH N/A
