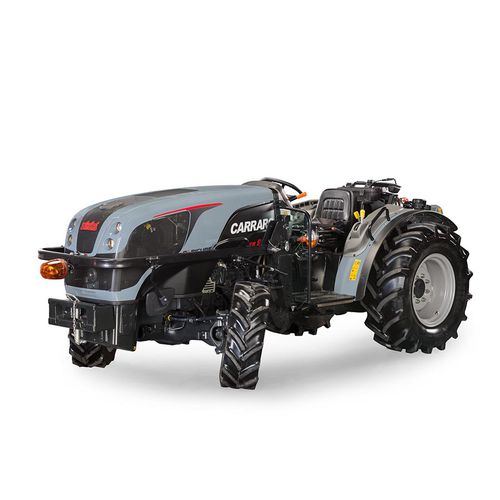

Low-profile tractor Frutteto Basso TIIIB
mechanical shuttlewith ROPS3-point hitch

Add to favorites

Compare this product

Go to the Carraro Tractors website for more information

Characteristics

Type: low-profile
Transmission: mechanical shuttle
Other characteristic: 3-point hitch, with cab, with ROPS, front PTO
Engine power: 55 kW, 62 kW, 68 kW, 72 kW, 77 kW
(75 hp, 84 hp, 92 hp, 98 hp, 105 hp)
Wheelbase: 2,074 mm
(81.7 in)
Torque: 309 Nm, 334 Nm, 366 Nm, 403 Nm, 406 Nm
(228 ft.lb, 246 ft.lb, 270 ft.lb, 297 ft.lb, 299 ft.lb)
Maximum speed: 42 km/h
(26.1 mph)
Fuel tank capacity: 74 l
(19.5 gal)
Total length: 3,950 mm
(155.5 in)
Total height: 1,300 mm
(51.2 in)
Weight: 2,740 kg
(6,040.7 lb)

Description

The Frutteto Basso tractor covers all the needs of specialised agriculture with canopy, pergola or pot-cultivated crops. The vehicle has a minimum width starting from 1.55m, and can take tyres of either 20" or 24" to meet a variety of needs in terms of vehicle height and traction. From the platform viewpoint, the 20" and 24" solutions are designed to keep the mud aprons as close as possible to the wheel dimension, with a minimum height of 1250mm from the bonnet and 1000mm from the seat and mud aprons. The Frutteto Basso tractor models are the 75FB, 85FB, 95FB, 105FB and 115FB, with the new high-performance Stage IIIB FPT engine (3,400hp) with electronic injection. The positioning of the DOC/DPF device outside the bonnet (a solution used by Carraro on all its range) makes this model the lowest of its category. An example of how to combine the latest emission requirements with the need to maintain the limits of bonnet height and operator seat.
