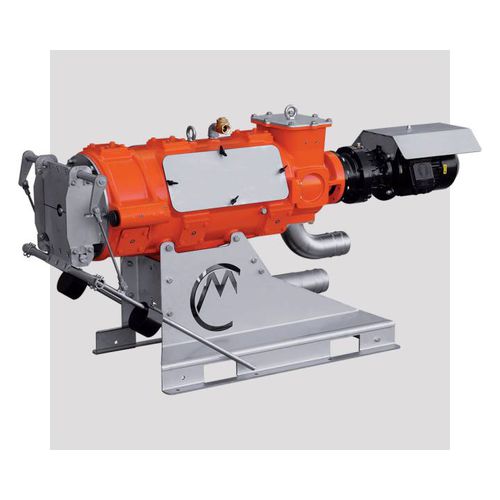

Screw slurry separator SM260 BASIC SERIES

screw slurry separator
screw slurry separator
screw slurry separator
screw slurry separator
screw slurry separator
screw slurry separator
screw slurry separator
Add to favorites
Compare this product


Characteristics

Other characteristics
screw

Description

For medium-sized barns (300 - 800 head) Technical specifications: • Screw in AISI 304 treated stainless steel • Standard Screen in AISI 316 stainless steel • Planetary gear box • Sealing system with three lip seals (mechanical seal on request) • Capacity: 4 - 50 m³/h (18 - 220 US gpm) • Rpm: 33 (50Hz) (40 (60Hz)) • Motor power: 4 kW (5,4 HP) • Screen mesh: 0,25 - 1 mm (0,01 - 0,04 inches) • Up to 30% Dry Matter
