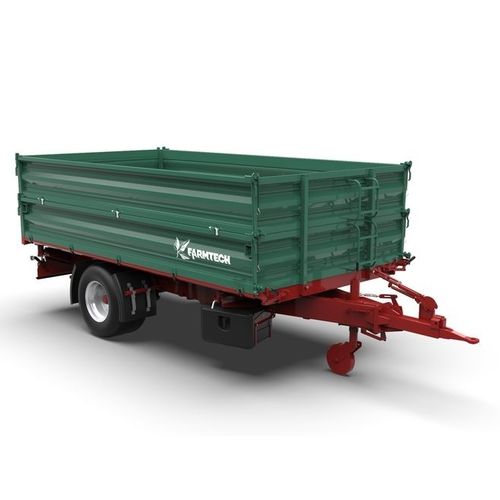

Dump trailer EDK 800
tippingsingle-axleagricultural

dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
Add to favorites
Compare this product


Characteristics

Construction
dump, tipping
Number of axles
single-axle
Application
agricultural
Payload
6 ton
Brake system
with mechanic braking
Empty weight

1,850 kg
(4,078.6 lb)

Recommended power

48 ch
(48 hp)

Load volume

9 m³
(317.832 ft³)

Loading case lenght

4,150 mm
(163.4 in)

Loading case width

2,160 mm
(85 in)

Loading case hight

1,000 mm
(39.4 in)

Description

The single-axle tipping trailers EDK represent the basic product segment of Farmtech and may be used for the transport of various agricultural loads. Especially with this type of single-axle tipping trailers, the excellent ratio between the weight of the construction and live weight. All EDK tipping trailers withstand extremely high loads in the field and on the street and are often being used by beginners and experienced professionals. With steel extension boards, robust quick release and serial central locking lever the EDK range offers maximum flexibility and economic efficiency. Optional equipment versions, for instance parabolic suspension, the HARDOX® floor or a dual circuit compressed air braking system offer an excellent completion for the professional industry-wide application. HIGHLIGHTS CHASSIS Sturdy frame made from steel square tube 220 x 80 x 6 mm, trapezoidal tipping frame, high drawbar hitch with adjustable towing eye D40 mm, mechanic parking jack, preparation for trailer coupling, underride guard with commercial LED road lighting system (EU) 2015/208, rear socket, rear wall support with the wheel (right rear), wheel chocks AXLE Heavy duty ADR-axle with 6-stud rims, track 1700 mm, axle load 9000 kg/axle at 25 km/h and 8000 kg/axle at 40 km/h, brake cam 350 x 90 mm Brakes: 1L Hydraulic brake Heavy duty FAD-axle with 6-stud rims, track 1700 mm, axle load 9000 kg/axle at 25 km/h and 8000 kg/axle at 40 km/h, brake cam 300 x 90 mm Brakes: Overrunning brake TIPPING MECHANISM Ball tipping mounting with conical socket, 4-stage hard-chromed telescoping cylinder, automatic stroke limiter
