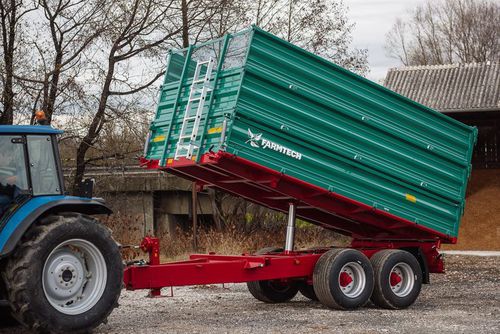

Dump trailer TDK 1500
tipping2-axleagricultural

dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
Add to favorites
Compare this product


Characteristics

Construction
dump, tipping
Number of axles
2-axle
Application
agricultural
Payload
12 ton
Brake system
with hydraulic braking
Empty weight

3,100 kg
(6,834.3 lb)

Recommended power

91 ch
(91 hp)

Load volume

Min.: 13 m³
(459.091 ft³)

Max.: 20 m³
(706.293 ft³)

Loading case lenght

4,510 mm
(177.6 in)

Loading case width

2,200 mm, 2,300 mm
(86.6 in, 90.6 in)

Loading case hight

1,200 mm
(47.2 in)

Description

To provide safe transport of high payloads on difficult terrain it requires the convincing features of our three-side tandem trailer TDK. Through its compact building method the driving unit enables high manoeuvrability and ensures above all maximal stability and safety when loading, discharging and driving. The especially low platform height, height-adjustable tow bar and efficient brakes provide the maximum driving comfort and safety at high speed. With its various equipment versions the TDK model is the best transport solution for beginners as well as experienced professionals. HIGHLIGHTS CHASSIS Sturdy frame made from steel square tube 300 x 100 x 6 mm, trapezoidal tipping frame, tandem chassis with parabolic springs mounted below, high drawbar hitch with fix towing eye D40 mm, landing gears (with gear box, double speed, three-stages), preparation for trailer coupling, underride guard with commercial LED road lighting system (EU) 2015/208, rear socket, rear wall support with the wheel (right rear), wheel chocks AXLE Two heavy duty ADR-axles with 8-stud rims, track 1750 mm, wheelbase 1010 mm, axle load 8000 kg/axle at 25 km/h and 7500 kg/axle at 40 km/h, brake cam 350 x 90 mm BRAKES Hydraulic brake with a mechanical valve and manual regulator or dual-line airbrake system on all four wheels, continuous brake line for second trailer, separate parking brake TIPPING MECHANISM Ball tipping mounting with conical socket, 4-stage hard-chromed telescoping cylinder, automatic stroke limiter, rear hydraulic connection for second trailer
