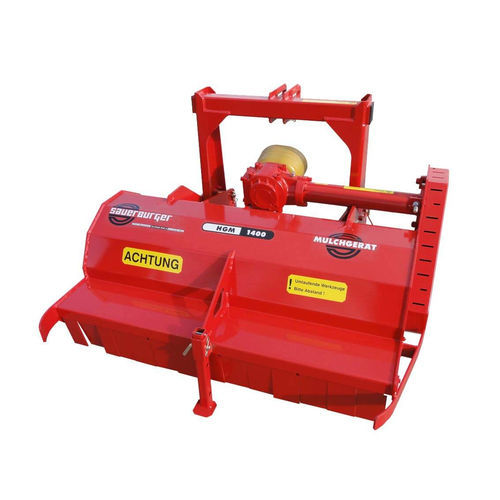

Rear-mount mulcher HGM/HGM-U series
flailfor orchardsvineyard

rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
Add to favorites
Compare this product


Characteristics

Type
rear-mount
Technology
flail
Applications
for orchards, vineyard
Number of hammers
16 hammers, 20 hammers, 24 hammers, 12 hammers, 36 hammers, 48 hammers, 60 hammers, 9 hammers, 8 hammers, 27 hammers
Other characteristic
PTO-driven, for tractors
Cutting width

Min.: 0.9 m
(2'11" )

Max.: 2.5 m
(8'02" )

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Weight

Min.: 325 kg
(716.5 lb)

Max.: 930 kg
(2,050.3 lb)

Description

HGM / HGM-U enable problem-free shredding of sawn timber, brushwood and harvest residues without having to convert the working tools •COMPACT •VERSATILE •ROBUST •RELIABLE HGM / HGM-U - The universal among the mulchers •The SAUERBURGER UNIVERSAL MULCHING EQUIPMENT enables problem-free shredding of sawn timber, brushwood and harvest residues without having to modify the working tools. •Fast working speed with low power requirement means fuel savings •High shredding effect due to counter blade and standard ripper tines causes quick rotting of the mulch and chopped material as well as faster humus formation. Double-sided and through-hardened bar blade or hammer bar. •Power transmission by several heavy-duty V-belts on stable working shaft with large-dimension bearings. •Extremely narrow side drive and smooth outer surfaces (work possible right up to the canes); no more damage to the vines due to scrapers on both sides, no more getting caught on the wire frame due to protruding screw heads or similar. Standard features •Universal flail knife can be used on both sides or wide flails •Freewheel integrated in gearbox •Counterblade •Roller or optionally support wheels height adjustable •Wood receiving tines •Accident prevention device with protective flaps at the front •Parking foot Special features •Cardan shaft •Linear lateral adjustment (standard on HGM 1550-2650) •Hydraulic cylinders and hoses for linear lateral adjustment •Front attachment (only for HGM 950-1650) •Baffle plate •Rear and front attachment with gearbox through-drive and double three-point linkage with linear lateral adjustment

VIDEO
