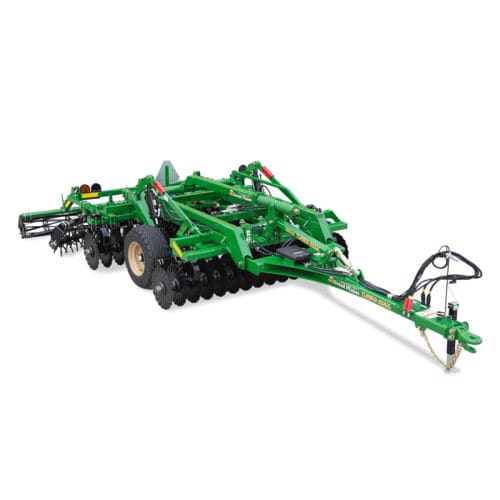

Towed vertical tiller TURBO-MAX® series

2-sectionoffsetfolding

True vertical tillage has become the go-to method for yield-boosting seedbed preparation. Turbo-Max is the ideal vertical tillage solution for min-tillers who want to size and anchor residue without aggressively working the ground in the fall. It vertically cuts residue and fractures the soil to create a smooth seedbed for uniform seed emergence. Because Turbo-Max is a true vertical tillage implement, it does not create compaction layers, giving roots the freedom to reach nutrients and moisture. Turbo-Max features hydraulic rear reels as an option on 12' (3.66 m) and 15' (4.57 m) models. Hydraulic rear reels allow the operator to control the reel down pressure from the cab to adjust for different field conditions. This allows the rear attachment to be lifted in less-than-ideal field conditions, saving time spent cleaning mud out of the reel. With working widths ranging from 8.5' to 15' (2.57 to 4.57 m), lower-acreage operations have access to the benefits of vertical tillage. Each Turbo-Max is designed with two rows of coulter gangs, with blades spaced 7½" (19 cm) apart. The rear gangs offset the front gangs, splitting the blade spacing to 3¾" (9.5 cm) for superior residue sizing in one pass. This allows the Turbo-Max to provide true vertical cutting without the shearing caused by concave blades.
