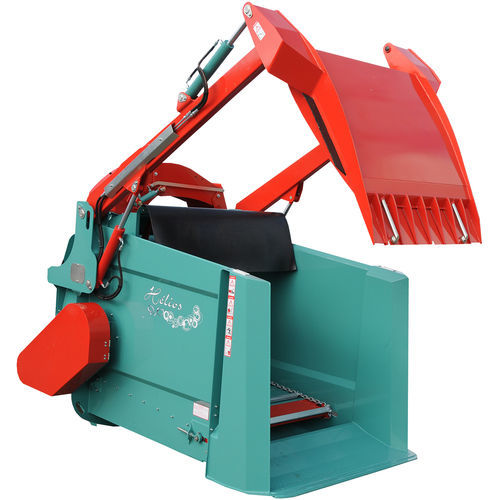

Feeding silage cutter HÉLIOS DP

beddingmountedtowed

Silo-unloading Rounded silo-unloading rake 2 cylinders on the arms 2 cylinders on the silo-unloading rake Indicator of the shovel position Watertightness plate on the shovel teeth Shredding – Dispensing – Mulching 1 shredder rotor mechanically driven by durable belt and automatic tightening equipped with 15 big blades predisposed to wrapped silage Chamber with 2 retainers Turbine Ø 1600 mm composed of 8 removable paddles Blower housing width 320 mm in anti abrasive steel (Brinel 430 hb 120 kg steel) Visit trap door (blower) 2 speed gearbox (feeding 270 rpm – bedding 540 rpm) with free wheel Dispensing and bedding mono-chute activated by 1 cylinder with manual dispensing slide or lateral bedding and feeding chute at the right hand side activated by 1 cylinder Dispense up to 18 m on the right hand side with round bale Ø 1,70 m Floor conveyor High strength Marine chain Ø 10, bars in removable rectangular tubes with manufactured ends ® Driving on the floor conveyor by moto reductor oil bath, front and rear side with electric adjustable speed Indicator on the floor conveyor rotation’s way Conception – Safety Monobloc body Dual floor with spring trap door for easy cleaning Bolted housing on hinges Rubber against dust Control Electric control of all the functions with a mobile control box in the tractor’s cab
