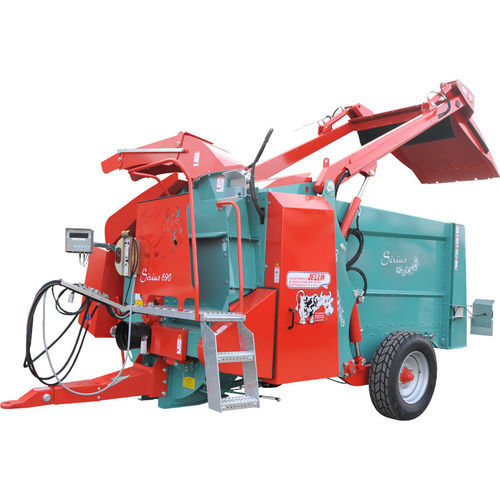

Feeding silage cutter SIRIUS DP 55

beddingtowed

Silo-unloading Rounded silo-unloading rake Watertightness plate on the shovel teeth rectractable by springs 2 cylinders on the arms caught in screed 2 cylinders on the silo-unloading rake caught in screed 2 cylinders on the increase axle caught in screed Indicator of the shovel position Shredding – Dispensing – Mulching 1 shredder rotor mechanically driven by durable belt and automatic tightening equipped with 15 big blades predisposed to wrapped silage Chamber with 2 retainers Turbine Ø 1600 mm composed of 8 removable paddles Blower housing width 320 mm in anti abrasive steel (Brinel 430 hb 120 kg steel) partly removable Visit trap door (blower) 2 speed gearbox (feeding 270 rpm – bedding 540 rpm) with free wheel Lateral chute on the right hand side for bedding and feeding activated by 1 cylinder Dispense up to 18 m on the right hand side with round or square bale Floor conveyor Floor conveyor Marine chain Ø 12, bars in removable rectangular tubes with manufactured ends ® Driving on the floor conveyor by moto reductor oil bath, front and rear side with electric adjustable speed Indicator on the floor conveyor rotation’s way Conception – Safety Removable bottom and sides Flat bottom of the body Dual floor with spring trap door for easy cleaning Bolted housing on hinges Smooth internal sides Rubber against dust
