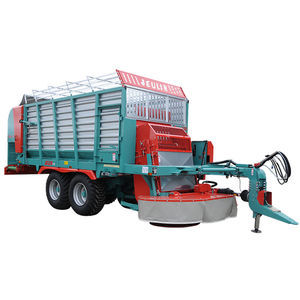

Loader wagon T séries
mounted2-axleagricultural

loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
Add to favorites
Compare this product


Characteristics

Construction
self-loading
Type
mounted
Number of axles
2-axle
Application
agricultural, silage
Brake system
with pneumatic braking, with mechanic braking
Other characteristic
with mower, PTO
Empty weight

2,100 kg, 2,470 kg, 2,820 kg, 3,100 kg
(4,629.7 lb, 5,445.4 lb, 6,217 lb, 6,834.3 lb)

Load volume

20 m³, 23 m³, 26 m³, 29 m³
(706.293 ft³, 812.237 ft³, 918.181 ft³, 1,024.125 ft³)

Loading case lenght

7 m, 7.5 m, 8.1 m, 8.7 m
(22'11" , 24'07" , 26'06" , 28'06" )

Loading case width

2 m
(6'06" )

Loading case hight

2.2 m, 2.7 m
(7'02" , 8'10" )

Description

Cutting system 2 drums rotary mower (2×4 blades, oil bath case, free wheel incorporated) Cutting width 1850 mm Automatic clutch of the cutting system Height setting of the rotary cut thanks to 1 hydraulic cylinders Conveyor width 950 mm composed of 7 combs eqquiped with 5 teeth Cutting system protection cover Unloading Shifting bottom progress by pawl Rear unloading with manual opening door Control Control by flexibles connection direct to tractor (1 DE – 1 SE) Conception – Safety Bolted housing Full bottom Road traffic Linkage beam with hydraulic dish Linkage over the transmission Parking brake and hydraulic brake on 1 axle Light in accordance with road code Manuel kickstand with wheel CE norms and DREAL homologation PTO Transmission PTO transmission with protection, transmission sleeve and safety bowl machine side Tractor equipment 1 PTO shaft 540 trs/mn 1 electric plug 12v/7 pins for light 1 hydraulic distributor SE (beware of the number if additionnal equipments) 1 hydraulic distributor DE (beware of the number if additionnal equipments) 1 adjustable linkage
