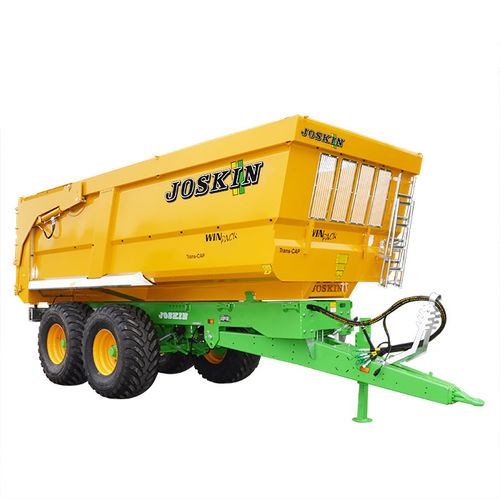

Dump trailer TRANS-CAP
2-axlesingle-axleagricultural

dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
Add to favorites
Compare this product


Characteristics

Construction
dump
Number of axles
2-axle, single-axle
Application
agricultural
Payload
10 ton, 12 ton, 14 tons, 16 ton, 18 ton
Other characteristic
monocoque
Load volume

Min.: 10.2 m³
(360.21 ft³)

Max.: 21.9 m³
(773.391 ft³)

Loading case lenght

Min.: 4.5 m
(14'09" )

Max.: 6.7 m
(21'11" )

Loading case width

2.2 m, 2.3 m
(7'02" , 7'06" )

Loading case hight

1 m, 1.3 m, 1.5 m
(3'03" , 4'03" , 4'11" )

Description

General Points The Trans-CAP agricultural-tipping trailers are the bestseller in the JOSKIN range of monocoque tipping trailers. Available with a single axle (from 10 to 12 t technically permissible payload) or a double axle (from 12 to 18 t technically permissible payload), they have a standard capacity from 10.20 m³ DIN to 21,90 m³ DIN. As an option, aluminium extensions of 25 cm, 50 cm, 75 cm or 100 cm, allow to significantly increase the total volume in order to get at any time a XL transport trailer. The Trans-CAP monocoque tipping trailers can have side walls of 100 cm (models 4500 and 5000), 125 cm (from 5000 to 6500) or 150 cm high (from 5000 to 6500) to adapt to all kinds of uses! Design/Chassis The chassis of the Trans-CAP tipping trailers is 900 mm wide and can therefore be fitted with wide wheels. It is made of profiles tubes of 250 x 100 x 6 mm on models 4500 and 5000, of 300 x 100 x 6 mm on 5500 and of 300 x 100 x 8 mm on 6000 and 6500. The Trans-CAP is fitted with a “Y-shaped” open drawbar that, given its structure, provides a very good weight/resistance ratio. Furthermore, its wide fixing points (same width as the chassis) further improve the maneuverability. This solution offers a straight pull/push line and a large vertical clearance at the eyelet and thereby also absorbing shocks. Please note that the drawbar has a cross-suspension ensuring the driving comfort of the whole carriage. The “Y-shaped” drawbar provides a natural traction line and increases the stability of the tipping trailer. This Y shape requires less power, and is therefore more economical and ecological.
