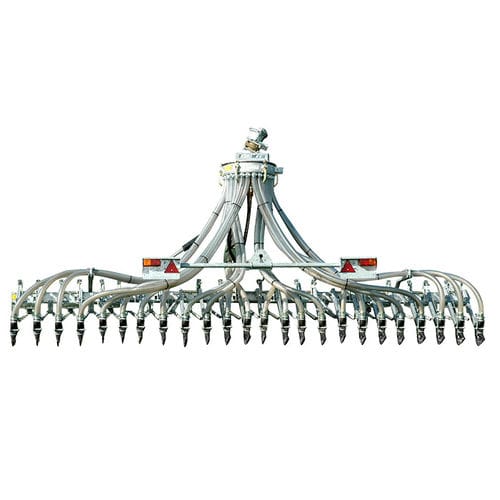

Mounted slurry injector MULTI-ACTION
disc harrowpasture

mounted slurry injector
mounted slurry injector
mounted slurry injector
mounted slurry injector
mounted slurry injector
mounted slurry injector
mounted slurry injector
mounted slurry injector
mounted slurry injector
mounted slurry injector
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Technology
disc harrow
Other characteristic
pasture
Width

Min.: 3.01 m
(9'10" )

Max.: 7.74 m
(25'04" )

Description

The Multi-Action has a low weight, many available working widths and an attractive price. It is made of a galvanised single-beam frame with free steering elements. Each element is fully galvanised and made up of two arms with independent deflection and a self-sharpening share followed by an injection cone. It requires little maintenance and combines modularity and easy design. Fitted with shares with a 21.5-cm spacing, it can be equipped as an option with small discs (Ø 250 mm x 3 mm) to cut the ground for a better penetration of the slurry. Usually, slurry is injected at a depth from 0 to max. 3 cm (depending on the humidity of the surface and the circumstances at that time). For a more precise spreading, this injector can be equipped with a section control that, thanks to an ISOBUS control and a GPS system, locates the areas that have already been fertilised and automatically closes the appropriate injection hoses. Structure and Working Principle The Multi-Action is made up of a galvanised single-beam frame on which free steering éléments are fastened with a 21.5 cm space between them. Each element is fullv galvanised and made up of two arms with independent deflection and a self-sharpening share followed by an injection cône. The share makes a groove in the ground (between 0 and 3 cm deep), while the injection cône smoothly and homogeneously lavs the slurry in the middle of this groove without splashing the plants. The retum springs, combined to the springs ser\Ting as mechanical shock absorbers, onlv start working from a given operating height and allow to apply the shares on the ground with a given pressure.
