Horizontal mixer 4260
trailed4-augerself-unloading

horizontal mixer
horizontal mixer
horizontal mixer
horizontal mixer
horizontal mixer
horizontal mixer
horizontal mixer
Add to favorites
Compare this product


Characteristics

Auger orientation
horizontal
Mobility
trailed
Number of screws
4-auger
Other characteristic
self-unloading
Capacity in m³

Min.: 260 ft³

Max.: 900 ft³

Description

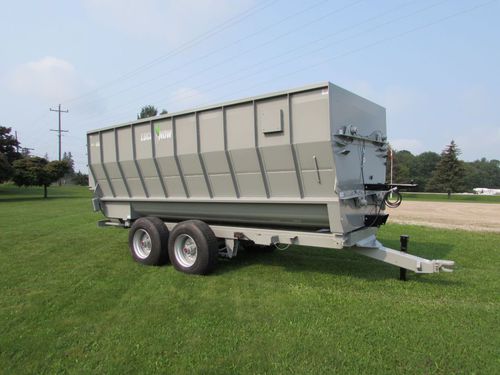

Horizontal four auger mixers in a trailer version with capacities from 260 to 900 cubic feet. The mixing augers are pto driven, the door and discharge are hydraulically operated. The heavy duty horizontal four-auger design are capable of giving the mix required, from rations with well cured, long stemmed legume-type hay, to mixes with green grass, and mixes with silage and commodities. Better milk production, better weight gains and greatly improved animal health are just some of the results of a finely-tuned feed ration. Features Planetary Gearbox Heavy duty planetary gear reduction to reduce input HP Grease Bank One location to lubricate all drive components Heavy Duty Sealed Bearings Heavy duty sealed bearings on the drive end of all augers Ledger with Shear Bar The addition of a ledger with a shear bar near the augers increases the cutting for those harder to mix rations 1/4" Steel Liners 1/4" thick steel bottoms with an extra 1/4" thick steel liner for additional wear resistance Oil Bath The rear oil bath allows for continuous lubrication of chains and sprockets Rear Safety Lights For extra visibilty when travelling in low-light conditions Slip Clutch PTO A slip clutch PTO to protect the driveline Scale System A Digi-Star four point scale system is standard Re-capped truck tires Helicoid Flight Auger Discharge For fast and complete unloading of your ration Adjustable Hitch Easily adjustable hitch with replaceable clevis Rear Bumper For added protection against damage Optional Special Discharge Lengths Special lengths of discharge chutes to meet your unloading requirements
