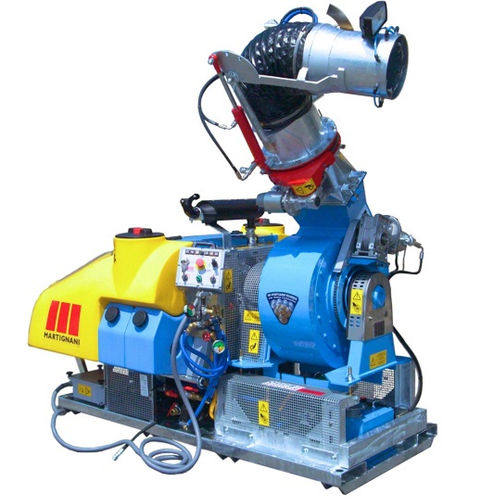

Mounted sprayer PHANTOM SUPER ECOLOGY "LUXOR"
cannonwith diaphragm pumppneumatic

mounted sprayer
mounted sprayer
mounted sprayer
mounted sprayer
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Type
cannon
Other characteristics
with diaphragm pump, pneumatic, centrifugal, disinfection, cannon
Capacity

400 l
(105.7 gal)

Pump capacity

60 l/min, 120 l/min
(15.9 us gal/min, 31.7 us gal/min)

Pump pressure

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.2 psi)

Air flow

25,000 m³/h
(882,866.7 ft³/h)

Description

The Phantom Super Ecology Luxor (50 HP & 80 HP) are available with two alternative engines upon requests: - Lombardini LDW2204 DIESEL 52 HP (WATER) - VM DIESEL 80 HP Turbo charged (WATER) - Frame: Hot Galvanized and of tubular steel pipes - Tank: 400 l (106 USG) high resistance polyethylene for the Luxor 50 HP and of Stainless Steel for the Major 80 HP version both equipped with circuit-cleaning tank and hand-washer complying with EC rules. - DOUBLE-SUCTION very High efficiency centrifugal fan M612 delivering up to 25000 cu.m./h (883,000 cubic feet/h.) at 90 m/s (295.20 feet/s.) - Gun head: of omnidirectional type with 250 mm (11.20") diam. outlet ("Standard" version) and 280 mm (12") diam. ("Major" version) and 8 non-clogging pneumatic nozzles - 4 mm (0.16") - - high precision METERING VALVE equipped with STAINLESS STEEL graduated scale (variable supply from 0 to 1200 l/hour-0 to 300 USG/hour at constant pressure of 1.5 bar (22 PSI) and (patented) anti-drip system. - Pump: Self-priming, centrifugal type, with mechanical seals (capacity 120 l/m-32 GPM flow rate) or with viton membranes (40 bar/580 PSI - 40 l/min/32 GPM flow rate) - “Long life” electric remote control with all integrated functions AVERAGE SPRAY SWATHS: - B-612 "Standard" model: up to 40/45 m (131.19/147.60') horizontal and up to 35/40 m (114.80/131.10') vertical - B-612 "Major" model: up to 50/55 m (164/180.39') horizontal and up to 43/48 m (141.04/157.44') vertical
