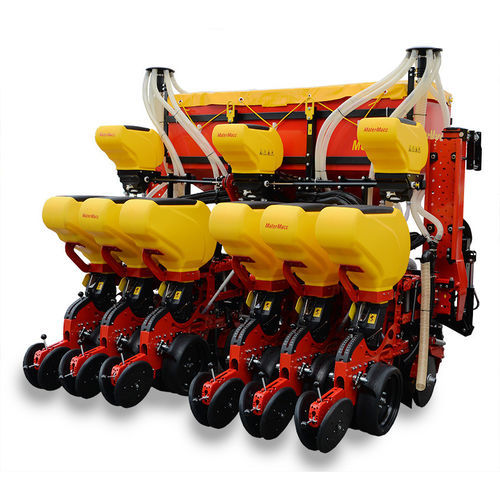

Pneumatic precision seed drill MS 8230 MIDIdisc12-rowtractor-mounted
Add to favorites
Compare this product
Characteristics
- Seed distribution
- pneumatic
- Type
- disc
- Number of rows
- 12-row
- Other characteristics
- tractor-mounted, with fertilizer applicator, 3-point hitch, folding
- Inter-row spacing
75 cm, 80 cm
(29.5 in, 31.5 in)- Power required
90 ch, 100 ch, 110 ch, 120 ch
(90 hp, 100 hp, 110 hp, 120 hp)- Weight
Max.: 2,220 kg
(4,894.3 lb)Min.: 1,570 kg
(3,461.3 lb)- Seed hopper volume
300 l, 350 l, 400 l, 450 l, 600 l
(79.3 gal, 92.5 gal, 105.7 gal, 118.9 gal, 158.5 gal)- Fertilizer hopper volume
1,000 l, 1,280 l
(264.2 gal, 338.1 gal)
Description
The MIDI acronym represents a precision planter which brings together all the features of the MS 8230 described above, a fertilizer tank with a capacity of over 1000 L and centralized control of the amounts distributed, a pneumatic transport system over all rows able to work with any inter-row distance.
Planting unit 8000-RS
“V” shaped 1” rubber closing wheels
Additional fan
Pneumatic volumetric metering unit
Step-less speed gearbox, for fertilizer
Hydraulic folding Easy-Set double tool bar
Transport width from 2,54 m to 3,20 m
Safety device against accidental opening of the tool bar
New cast-iron wheel support with Quick-Set system
P.T.O 540 rpm
Cardan shaft with free wheel 1” 3/8 Z6-Z6
Vacuum meter
Hydraulic automatic row marker
Centralized gearbox 21 ratios
One set of seed plates
One set of Easy-Set spacing rods
Small seeds level gauge and dropping device
Seed emptying collector
Front drive wheels: 2 of 20x8.00-10 (200 mm)
NOTE: Requires 2 hydraulic connections to the tractor
