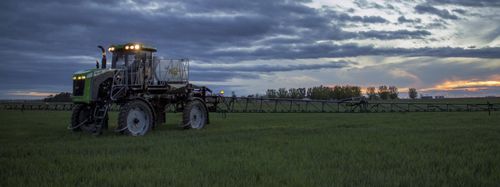

Self-propelled sprayer MÚLTIPLE 7040
hydraulicfolding armsthermal

self-propelled sprayer
self-propelled sprayer
self-propelled sprayer
self-propelled sprayer
self-propelled sprayer
self-propelled sprayer
self-propelled sprayer
Add to favorites
Compare this product


Characteristics

Mobility
self-propelled
Technology
hydraulic
Other characteristics
folding arms, thermal
Capacity

3,500 l, 3,750 l
(924.6 gal, 990.6 gal)

Working width

32 m
(104'11" )

Description

Every METALFOR machine provides security, comfort and versatility for overall efficiency. This machine is equipped with modern elements and advanced technology, allowing you to perform all the functions it has been designed for, quickly and easily. CAB Spacious cab with glazed surface which allows an almost 360º field view, with active air suspension. Adjustable steering column. Suspended pedals. Air-suspension seat, with height, tilt, seat hardness and leg space adjustment. Air conditioning and heater with activated carbon filter. SPRAYING SYSTEM High density polyethylene tank, of 3,750 L of real volume and 3,500 L of nominal volume. High-flow electrical hydraulic mixer. High-flow and high-pressure spraying pump. Circuit protective system using a maximum pressure valve. Line triple filtering system. 150 L rinse tank. Raven 4600 Spray Controller with 9 breakaway sections, a fivefold nozzle system at 35 cm with 5 sets of discs, and singles at 52 cm. SPRAYING BOOM Tubular structure boom of 32 m working width. Lifting system on a parallelogram with double lifting brackets. Broad angular movement of the boom, sliding on bearings. LOADING SYSTEM Normalized system with Banjo hydraulic loading pump of 49,000 L/h. Normalized product loading mixer, with drum washer and powder dilution. With coupling and hose for cleaning of the equipment. BREAKS Double circuit with pneumatic brake assist. Four-wheel disk brakes with heavy-duty caliper. Parking brake.
