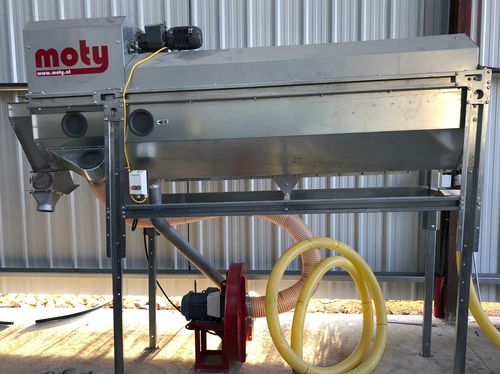

Pumpkin seed washing unit KEW 3000

semi-automatic

TECHNICAL DATA Performance: approx.2.000 kg/h Connection voltage: approx. 0,75 kW – 400 V/32A Washing drum: length 2.850 mm, Ø 560 mm Weight: approx. 500 kg Suction (optionally): 550 mm length, 3,0 kW fan STANDARD EQUIPMENT Washing machine • base frame made of galvanized steel • stainless steel sieve drum, 24-angled, optimised washing result • drum with direct drive • tempered steel pulleys with greaseable bearings • inlet for seeds made of stainless steel tube DN 80, galvanized water tube Control • all connections are pluggable • with motor overload switch for the drum and fan ADDITIONAL EQUIPMENT Water recycling with 2-stage washing process • 2-stage washing process with separate water supply (recycling water & freshwater) • free-standing separator with cleaning brush to separate water and pulp • the integrated water treatment/recovery ensures an optimised cleaning of the seeds • the fresh water consumption is reduced by up to half Recycling water • 1,5 kW feed pump with 400 liter collection container for recycling water • with tube and pipe set (DN150) for connecting the washand recycling plant Suction unit • suction in the final part of the washing drum with suction funnel and silent high pressure suction fan 3,0 kW • with reinforced shaft seal incl. 2.000 mm tube and clamping pieces, cleaning brush
