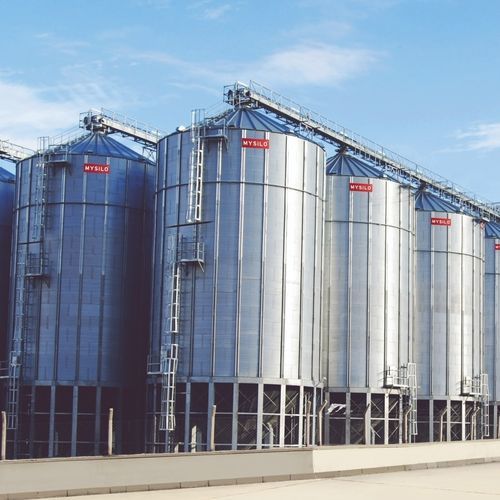

Hopper silo S-CH series
for graingalvanized steelhopper bottom

hopper silo
hopper silo
hopper silo
hopper silo
hopper silo
hopper silo
hopper silo
hopper silo
Add to favorites
Compare this product


Characteristics

Application
for grain
Material
galvanized steel
Form
hopper
Other characteristic
hopper bottom
Volume

Min.: 102 m³
(3,602 ft³)

Max.: 2,528 m³
(89,275 ft³)

Description

Wide range of products Mysilo manufactures different model commercial hopper base silos, diameters of which varies from 4.58 to 11.0 m and capacity up to 1829m³. Four different hopper angles as 37°, 40°, 45° and 60° can be manufactured according to silo diameter, grain to be stored, natural conditions of the place where silo is desired to be erected such as wind, seismic, snow loads. Hopper angle of silos vary depending on sio diameter, intended use and be stored type of product for comfort flowing. Waste of time and Money are prevented by hopper base while unloading. Hopper bottom silos can be separated into two sections. First ones which have low capacity are named Economic Hopper Bottom Silos and others which have high capacities Commercial Hopper Bottom Silos. Due to the high capacity, specially designed strong hopper structure bears the silo loads efficiently. All design details are considered for the safe grain storage. Mastic: Hot and cold resistant mastic is used in the joints of sidewall sheets to provide excellent sealling in all climates Bolt: At all junction points of sidewall sheets and stiffeners, DACROMET 500 coated 10.9 quality bolts are used in order to ensure the maximum durability. Thanks to the high density polyethylene conical gaskets found in bolts, sealing is kept at the highest level. Sidewall Sheets: Mysilo, manufacturing more durable silos thanks to the narrowest corrugated sidewall sheet of 65 mm, has a huge advantage against its competitors with this feature.
