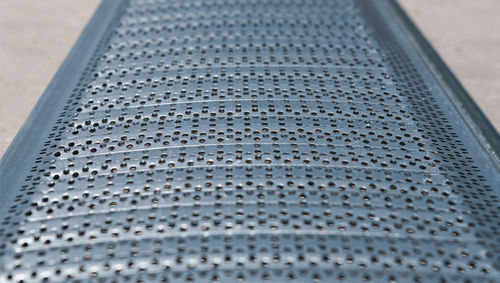

Metal drying plate HSKK series

for grain

The channel type ventilation system performs its function when the air pressed into the channel passes through the grids and reaches the product after it is closed with the ventilation grids, which are mounted on the concrete channels that have been previously opened on the bottom of the silo. Offers a variety of ventilation grid designs to meet the required ventilation surface area for your grain type. Ventilation system elements made of galvanized sheet are resistant to corrosion and offer long material life. The ventilation has a locking system that reduces floor movement and supports overload conditions. Since the Ventilation Grids are locked, they provide easire assembly, and it is easy to clean. The ventilation system support legs are designed to withstand the maximum load pressure. The narrow hole type ventilation grid is the most powerful grid available. Ideal for high ring silos. Narrow-hole type grid is produced in 90 mm width for more durable usage on the ground. Narrow-hole type grid with a hole diameter of 2 mm; It is used for aeration of products such as wheat, barley and corn. Stripe Type is manufactured in 180mm width. It is possible to ventilate small grain grains such as canola by stripe type with an opening of 1,3mm. Stripe Type grid is designed according to the air opening rate. Perforated Type is manufactured in 180mm width. It is possible to aerate the grains such as wheat, barley, corn by perforated type with a diameter of 2 mm. Perforated Type grid is designed according to the air opening rate. Mysilo Heavy Duty Perforated Plates are mostly designed for usage in horizontal warehouses.
