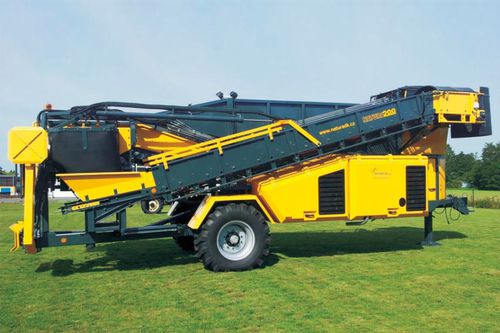

Beet cleaner-loader NATURA200

towed

NATURA200 is a trailed machine for cleaning and loading sugarbeet, which was developed upon many years of experience with manufacturing and operating beet cleaners. It is a powerful machine for gentle yet optimal cleaning and loading of sugarbeet in the field or in solid-surface loading yard. The machine has a uni-axial chassis with pneumatic braking system. It has a robust frame built of solid hollow sections and metal sheets with firmly welded runner chassis. The walls of the feeding chute are made of steel plates and rounds, and both side frames are covered with scratch-proof plastic layer to minimise damage to loaded beet. The scratcher bottom is made of steel partitions connected with 12 x 42 articulated chain. High cleaning performance Rubber segments, as the first active cleaning stage, consist of 1 hexagon shaft, 5 three-digit shafts, 5 triangular rosettes and 2 spiral rollers. The second active cleaning stage consists of 6 spiral steel round rollers in counter-rotating pairs with reversible action. The loading conveyor belt is 8.5 m long with maximum loading height of 5.5 m and is fitted with scratch-proof polyamide layer to increase its lifespan.
