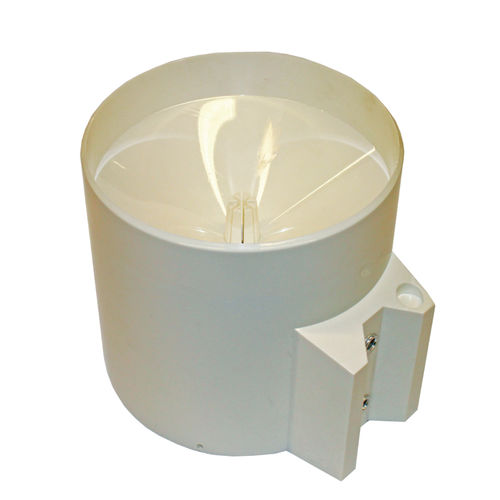

Rain gauge 600157 / 900163

The mechanic consists of a magnet, which moves past a reed switch and opens or closes the circuit. The double spoon tips left or right and does not lose any water due to a very fast switching mechanics. The resolution with a surface of 200 cm2 is 0.2 mm, while the resolution with the 80 cm2 is 0.5 mm. Heating for rain gauge can also be included. Sensor Type - Double tipping bucket rain gauge Output - Switch signal Switch - Reed contact, solid state Sensitivity - 1 tip per 0.2 mm or 1 tip per 0.5 mm Collector Surface - 200 cm2 Evaluation - Digital Maximum Rain - 12 mm/minute Dimensions - 185 mm diameter x 250 mm H Accuracy - ±5%
