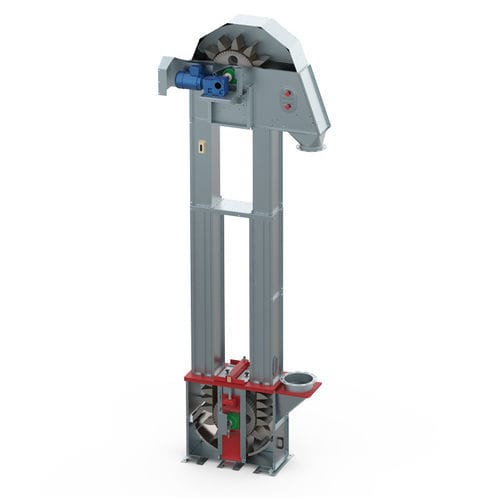

Bucket elevator PPK series

The Polnet Bucket elevators are designed for the vertical transport of all grains, seeds, granulated products and other loose materials with a maximum diameter 16 mm and a maximum moisture content of 25%. Bucket elevators are available in 3 sizes with high capacity conveying designed for high capacity conveying – up to 200 m3/h. Max length up to 30 m. -Made entirely of constructional galvanized steel -Wheel with rib bar -Self-cleaning foot equipped with movable bottom -High quality bearings, easy to maintain -Areas subject to abrasion are protected with hard-wearing lining -The elevator is bolted with galvanized screws with a hardness of 8.8 -The NORD gear-motor is enclosed in a head cover to protect it from weather conditions -Properly profiled pulley prevents the belt from rubbing against the channel walls. A unique solution that causes the self-alignment of the belt on the wheel -Wide belt adjustment, allowing its precise tension -Robust and precise, laser–cut elements of the drive and tension wheel ensures long service life, failure-fee and low wearing of the belt -Optimal belt speed guarantees both gentle treatment of the grain and adequate ejection force during seed delivery. -Equipped with reliable STARCO steel buckets with high durability. The screws of the buckets eliminate the possibility of unscrewing any of bucket from the belt -Optional equipment with: motion detector, belt linearity sensor and foot overloading sensor, service platform and a support tower
