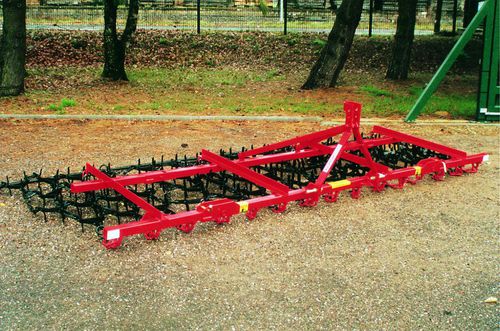

Chain harrow HE series
foldingtrailed

chain harrow
chain harrow
Add to favorites
Compare this product


Characteristics

Type
chain
Other characteristic
folding, trailed
Working width

2.5 m, 3.4 m, 4.5 m, 5.3 m, 6 m
(8'02" , 11'01" , 14'09" , 17'04" , 19'08" )

Description

The HE has been designed for moss elimination; Getting rid of moss rapidly and efficiently is this implements main role. Trailed or three point linkage mounted, this harrow has working widths from 1,60m to 6m. The oval shaped steel points do a remarkable job. The wide models have hydraulic folding fitted as standard. TECHNICAL SPECIFICATIONS Trailed model: Frame: triangular welded elements with oval profile steel points. Towing bar and chain with a hook for hitching .Mounted model: Frame: elements welded in a triangle oval steel teeth, Bar with 3 point linkage. Three point linkage mounted frame square 60mm square tube twin beam, square 80mm tube for the HE 5.30 and HE 6.00. Hydraulic folding as standard for the wider harrows (5.30 m and 6.00 m). Marker panels and road lighting kit depending on width.
