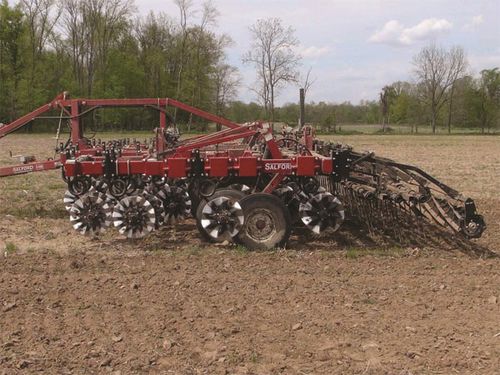

Trailed disc harrow I-2100
3-sectionwith hydraulic adjustment3-point hitch

trailed disc harrow
trailed disc harrow
trailed disc harrow
trailed disc harrow
trailed disc harrow
trailed disc harrow
trailed disc harrow
Add to favorites
Compare this product


Characteristics

Mobility
trailed
Number of sections
3-section
Other characteristic
with hydraulic adjustment, 3-point hitch
Width

Min.: 3.66 m
(12'00" )

Max.: 18.29 m
(60'00" )

Description

1 5/8" Coil-Tech Coulter II blade mount The I-2100 uses the Coil-Tech Coulter II—a heavier coil spring—to carry larger five-bolt hubs and 22-inch blades, increasing Coil-Tech's jackhammer effect and allowing the coil spring to penetrate into tougher ground conditions. The I-2100 employs the heavy frame design used for the rubber suspension Independent Series machines for increased weight per blade and to manage the additional vibration created by this second generation Coil-Tech. True to the Independent series design, this machine is able to cover an acre per hour, per foot. In other words, a 41-foot machine will cover 41 acres per hour. The I-2100 has been engineered for compatibility with I-Series seeding and fertilizer attachments to allow producers to combine field operations, saving fuel and man hours. STANDARD FEATURES Coulters and Mounts -20” dia x 5mm coulter -Boron steel blades -8 or 13 wave blades -7” of vertical travel Frame -Heavy Duty 4”x 6” tubing -Hydraulic level lift -Hydraulic single-point depth control -Heat treated cast clevis hitch -Operator convenience center -Welded main frame with capped tube ends Tires—Mainframe -12’ 6 bolt 11L x 15 “F” -16’ 6 Bolt 11L x 15 “F” -20’ – 24’ 8 bolt 12.5 L x 15 “F” -28’ - 36’ 8 bolt 305/70 x R22.5 -41’ (3 Section) 8 bolt 305/70 x R22.5 -41’ (5 Section) 8 bolt 425/65 x R22.5 -50’ (5 Section) 10 bolt 425-65R x 22.5 -60’ (5 section) – 10 bolt 445-65R x 22.5
