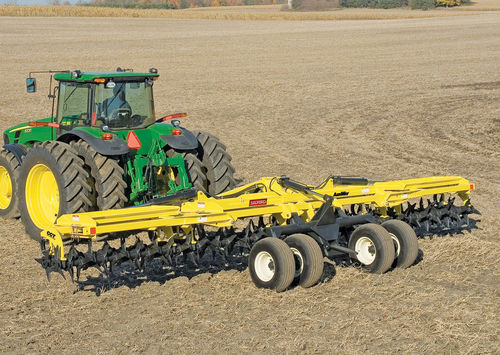

Towed soil aerator CCT series

folding

SETTING NEW STANDARDS FOR VERTICAL Tillage The AerWay® family of patented vertical tillage tines are designed to relieve compaction, manage crop residue, and warm the loosened soil for seedbed preparation. The patented tine technology is available in both ShatterTine® and Leaf Tine® profiles. AerWay vertical tillage is accomplished by the unique lean and twist of the tines designed to move soil laterally, plus lift and fracture soils to 8 inches and deeper. New pathways are created for air and water movement, while maintaining the valuable protective surface residue. With better soil conditions, plants respond with stronger roots and better yields. FEATURES Standard: -Frame Configuration – Available in 10 to 40-ft. widths. Single roller system with four tines per row. Standard 7 ½” tine spacing. Patented CCT (Close Coupled Tandem) uses two overlapping tined rollers, with three tines per row, giving you more pockets and fractures per acre. -Wing Down Pressure Valve – Standard on all Folding Wing models. Valve is pre-set at the factory but can be easily adjusted in the field to suit varying ground conditions. -Trunnion Bearing & Mounting Bracket – Heavy-duty 50mm bearing standard on all AWST and AWFT machines. No-lube bearings are designed for severe service applications. -C-Flex System – Standard on all AWST and AWFT machines. Designed to protect rollers from impact and shock loads. Benefits: -Versatility – Quick-adjust feature allows you to easily vary the roller swing angle to meet your tillage and cropping demands. -Value – Can be used full season and is readily adaptable to no-till, minimum till, and conventional till practices.
