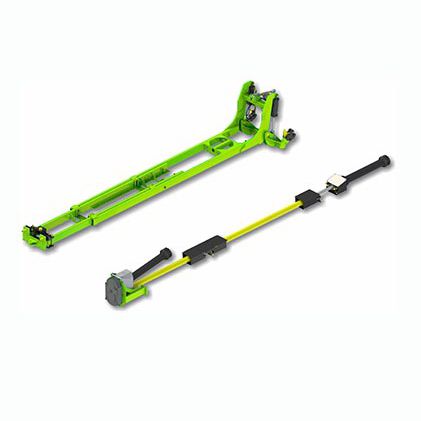

Tractor front linkage FM-350

PTO

- Enjoy the convenience, comfort and improved performance of a front mounted snow blower. No matter how much snow you need to move you will appreciate the FM-350. - The FM-350 gives you the ability to mount your 3pt snow blower on the front of your tractor instead of on the tractor’s rear 3pt hitch. - Better visibility and ergonomics when coupled with a Schulte Snow Blower. - Blowing snow while driving forward, is more efficient than blowing snow in reverse. - The FM-350 allows you an increased selection of travel speeds, as your tractor has many more forward gears then reverse gears. This increased gearing selection will result in better snow blowing performance and less wear and tear on the tractor clutch, and your neck. - The FM-350 is available without a drive train for blades. - NOTE: This frame is not compatible with mounting on tractors equipped with Super-Steer SPECS Tractor horsepower, maximum - 250HP max Tractor PTO - 1000 RPM for SDX/RDX117 and SDX/RDX102, 540 RPM for SDX/RDX102 only Adjustability - Accommodates tractors between 151” and 211” measured from front mount plate to drawbar pin Nominal ground clearance - 13” depending on tractor installation Nominal lift range - 18” Weight - 1650 lbs
