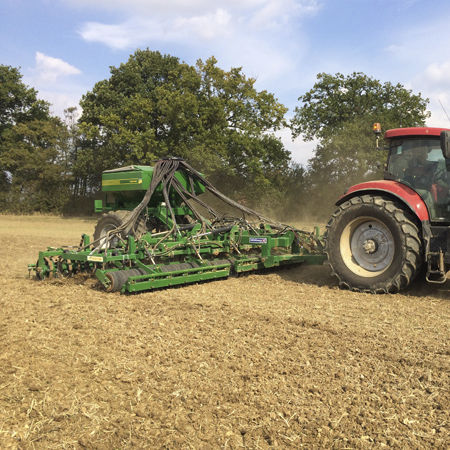

Hopper seed drill 600APT,800APT
disctinetrailed

hopper seed drill
hopper seed drill
hopper seed drill
hopper seed drill
hopper seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
hopper
Type
disc, tine
Other characteristics
trailed, depth control
Working width

6 m, 8 m
(19'08" , 26'02" )

Description

The T-SEM trailed drills are our latest development aimed at large acreages farmers and those practising Controlled Traffic Farming. Trailed models have the same disc, tine & roller layout as with all the T-SEM models, but they also feature a full width front Pneuflex roller for depth control and extra ground firming when drilling cultivated soil. The front discs are hydraulically controlled to enable them to be lifted out of work quickly when turning corners or just adjusting their working depth. Tine row spacing is increased from 520 to 600mm to allow even greater trash clearance and the standard rear Springflex roller can be changed for other types of roller if required. The large rear mounted hopper is carried on 70cm wide Michelin MACH-BIB tyres that can be run as low as 6psi (0.5bar). T-SEM trailed drills have excellent contour following. Models up to 8m have 3 sections with the 2 outer sections mounted on a centre pivoting pressurised frame. Models from 9m to 12m have an extra 2 outer sections, which also independently follow the ground contours. All models fold to 3m for transport. All models can be fitted with a liquid fertiliser kit and for 2014 a combined seed and granular fertiliser option is planned for the 6m model.

VIDEO

Catalogs

No catalogs are available for this product.

See all of Simtech Aitchison‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
