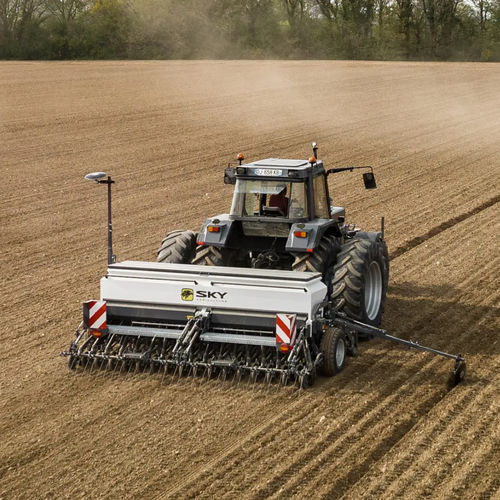

Mechanical seed drill Tramline SE/SX
disctractor-mountedwith harrow

mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
mechanical
Type
disc
Other characteristics
tractor-mounted, with harrow
Working width

3 m, 4 m
(9'10" , 13'01" )

Inter-row spacing

12 cm, 13.7 cm, 14.2 cm
(4.7 in, 5.4 in, 5.6 in)

Weight

550 kg, 650 kg, 850 kg
(1,212.5 lb, 1,433 lb, 1,873.9 lb)

Seed hopper volume

Max.: 1,350 l
(356.6 gal)

Min.: 450 l
(118.9 gal)

Description

Very strong twin beam carrying frame The single-piece hopper is mounted on this double beam chassis. This design makes the TRAMLINE particularly robust and enables you to carry out intensive drilling operations with complete peace of mind. It also guarantees an extended lifetime and resale value. Accuracy from the SULKY peg-wheel metering Thanks to SULKY expertise and the use of hard-wearing materials, this distribution gives you many advantages: – Precise application rate from 1.5 to 400 kg/ha – Multi-purpose, from rapeseed to beans – Quick and easy calibration test, with the seed drill on the ground – Complete hopper emptying due to the separating baffles at the hopper base. UNISOC or UNIDISC: a top of the range drilling system Thanks to the springs positioned high up on the drilling bars, the powerful double-effect mechanism provides numerous advantages: – Application pressure onto the drilling elements of up to 30 kg with the UNIDISC or up to 20 kg in UNISOC (springs compressed) – Pressure relief of the drilling elements for light drilling (springs released) – Extreme vertical clearance to pass over plant debris. – Possibility of fitting SULKY press wheels on the tool bar 2 wheel drive for more precision With the metering being driven by both large wheels on the drill, there is excellent seed rate precision in all drilling conditions, even on headlands or uneven ground. The right dosage will always be applied, whatever the quality of your plot. A large hopper which makes filling easy, in sacks or Big Bags With particularly wide opening, TRAMLINE hoppers are low and easy to fill.
