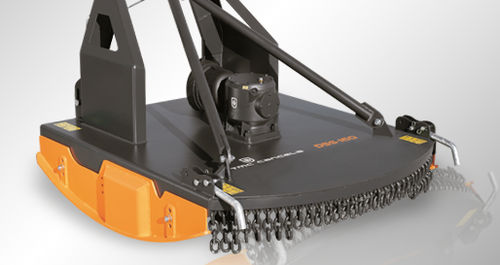

Forestry rotary cutter D5S

rear-mount

The topper mower by TMC Cancela is a very robust and versatile topper for pros. This agricultural mower easily carries out land clearing and upkeep work on forests and farms. TECHNICAL FEATURES FIXED BASE MODEL · Folded steel sheet with rounded back and welded reinforcements on the bottom face. · Three point linkage made of steel sheet with tension steel tube bars. · Front and rear chain curtains for protection. · Coupling to tractor Cat. II. · Adjustable in height rounded skids with wear resistant steel and Widest patented device. · Rear bended pins for guiding the brush inside the working width during reverse workings. SHIFTING BASE MODEL · Three point linkage made of steel sheet with hydraulic cylinder and nylon bushings for displacement. · Hydraulic hoses with external cover agains sratches and protective connections for the fittings during storage. · Rotor with one cutting level height. · Replaceable pins for connecting the chains to the rotor. · PTO shaft with clutch. · PTO to 1000 rpm and 1”3/4 Z6 input. · 4 chains. · Optional: assembled with 2 blades. OPTIONS · 540 rpm gearbox. · 1000 rpm gearbox. · Rotor assembled with blades.
