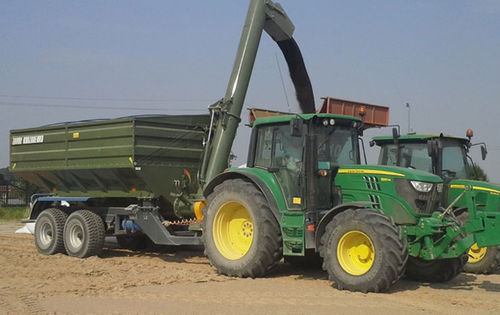

Chaser bin PBN-16
2-axlegrainwith pneumatic braking

chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
Add to favorites
Compare this product


Characteristics

Construction
chaser bin
Number of axles
2-axle
Application
grain
Brake system
with pneumatic braking
Empty weight

16,000 kg
(35,274 lb)

Load volume

16 m³
(565.035 ft³)

Loading case lenght

7,070 mm
(278.3 in)

Loading case width

2,480 mm
(97.6 in)

Loading case hight

3,390 mm
(133.5 in)

Description

Reloading trailer special constructed for transportation of grain from the combine and reloading it into other machines or containers. Also this machine can provide fast loading of seeders and loading BigBags. Main advantages: 1. Increasing of the combine threshing by more then 30% - harvester does not stop and unloads grain while moving. 2. Working on the wet field (Big tires with low pressure can easily goes through light swamps and mud). 3. Reducing of seeding machine idle time under loading (the productivity of seeding machines increases up to 30% per shift). 4. Weighing of grain on the field with the check issue or sending GPS data to an operator computer. Grain reloading trailer consist of one of the best EU parts, for example: Italian suspension (ADR firm), Polish discs (Pronar) with BKT, Mitas tires. All reducers and cardan shafts are Italian (Bondioli and Pavesi). Technical characteristics of the reloading trailer 1.Two-axle tandem with springs (ADR Italy) axle 90х2100 all-in-one-piece 2.Tires 500/50-22.5 16PR (load 4.25 t, while 40km/h.) 3.Pneumatic braking system WABCO (possible: hydraulic, mixed) 4.Body V-16m3 vehicle capacity 12t. (trailer loading height 2,90m.) 5.Auger Ø400 mm. (productivity 3t/min.,unloading height 4,3m.) 6.Driving reducer S2100 (produced by Bondioli and Pavesi, Italy) 7.Hydraulic trailer hitch leg 8.Replaceable trailed ring Ø40,50, 90 mm. 9.Horizontal auger cleaning mechanism (three windows)
