Gartenbau-Erntewagen BERGLADY

für Obstplantagefür Astschnittmit Eigenantrieb

Multifunctional use beyond harvest
Our founder Michael never liked machines that are used only for a few weeks during harvest and remain idle for the rest of the year. That’s why the Berglady was developed – as a further evolution of the Lady, designed to use the same base machine also outside the harvest period. Thanks to its reinforced construction and predefined mounting points for optional attachments, the Berglady not only expands its harvesting capabilities but also enables various maintenance tasks to be performed throughout the year.

More power and stability
The Berglady was built with a stronger structure to safely carry heavier loads during work while maintaining full stability. With more powerful motors, optional reduction gearboxes, and a 48V system, it can handle loads of up to around 600 kg. The longer wheelbase and wider track provide a solid base — both when two people are working on the pedestals during harvest while a full fruit bin is being transported, and when pruning trees in winter on uneven or slippery ground. Even slopes of up to around 40% are possible, with the system recovering braking energy on descents to extend battery life in hilly orchards.

Platform and pedestals when needed
Instead of building a separate, larger machine, the Berglady was designed so that a platform or harvesting pedestals can be mounted when required. This allows the same base machine to take on different tasks throughout the season. The platform is mainly used for maintenance work such as pruning in winter, tying in spring, thinning during the growing phase, or working on hail nets (e.g. opening clips). The harvesting pedestals, on the other hand, are primarily used to enable picking in mid- and higher-tree areas.

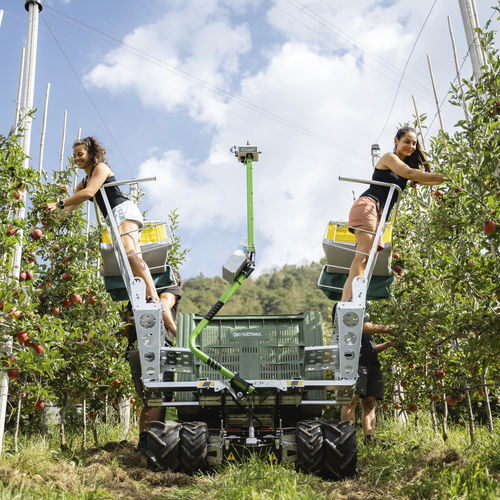

Reaching higher picking zones
The harvesting versatility of the Berglady can be significantly increased by attaching harvesting pedestals. This allows workers to reach tree sections that would otherwise require a separate lifting platform or traditional picking ladders. Depending on the model and the slope, heights between approximately 2.30 m and 3.50 m can be reached. The pedestals can also be adjusted to the respective row width, which can vary between 2.20 m and 3.50 m depending on the planting system.

Machine configuration / Optional add-ons (selected examples)

• Platform Standard (1 person) — Row width: 2.30–2.70 m — Price: €2.700,00
• Platform Wide (2 people) — Row width: 2.70–3.50 m — Price: €3.500,00
• Harvesting Pedestals – Medium Area — Tree height: 1.50–2.70 m — Price: €1.700,00
• Harvesting Pedestals – Higher Area — Tree height: 2.20–3.50 m — Price: €1.950,00
• Additional Battery Capacity — From 1.56–5.04 kWh — Price: €800,00
• Special Wheels — Soil protection vs. traction — Price: €400,00
• Vineyard Seat — For defoliation, pruning etc. — Price: €190,00

Caractéristiques / spécifications techniques

• Engines: 2 DC motors, rated power 0.85 kW
• Gearboxes: Bevel spur gear
• Brakes: Electromagnetic
• Steering: Tank steering via joystick
• Control system: Forward and reverse travel via joystick
• Batteries: Lithium batteries (battery packs weight 7–20 kg depending on option)
• Charger: 5–30 A electronically regulated (standard)
• Driving speed: Stepless from 0 – max. 4 km/h
• Climbing ability: Max. 20% upwards (without slope compensation); Max. 40% with maximum slope levelling; Max. 15% side slope
• Max. load capacity: For crate transport 400 kg; On platform max. 200 kg (including persons)
• Unladen weight: approx. 250 kg (+ platform attachment 75/90 kg depending on model)
• Tires: 16" × 6.50 × 8 tyres inside — tractor profile 16" × 6.50 × 8 tyres outside (optional) — tractor profile; 16" × 7.50 × 8 tyres outside (optional) — garden profile
• Total length: 1.55 / 1.70 m (depending on version)
• Total width: 0.90 / 1.40 m (depending on version)
• Working Platform: Length 0.90 m; width 0.90 / 1.20 m (depending on version); Unfolded: 1.80 / 2.20 m (depending on version); Working height: approx. 1.30 m
• Harvesting pedestal reach: approx. 2.30 m – 3.50 m depending on variant and slope
• Designed for multifunctional year-round use with predefined mounting points for attachments (platform, pedestals, additional batteries, wheels, seats)
