Overview
Our founder Michael never liked machines that are used only for a few weeks during harvest and remain idle for the rest of the year. The Berglady is a further evolution of the Lady, designed so the same base machine can be used also outside the harvest period. Thanks to its reinforced construction and predefined mounting points for optional attachments, the Berglady not only expands its harvesting capabilities but also enables various maintenance tasks to be performed throughout the year.

More power and stability
The Berglady features a stronger structure to safely carry heavier loads while maintaining full stability. With more powerful motors, optional reduction gearboxes and a 48V system, it can handle loads of up to around 600 kg. A longer wheelbase and wider track provide a solid base both when two people are working on the pedestals during harvest while a full fruit bin is transported, and when pruning trees in winter on uneven or slippery ground. Slopes of up to around 40% are possible; the system recovers braking energy on descents to extend battery life in hilly orchards.

Platform and pedestals when needed
Instead of building a separate larger machine, the Berglady is designed so that a platform or harvesting pedestals can be mounted when required. The same base machine can take on different tasks throughout the season: the platform is mainly used for maintenance work such as pruning, tying, thinning and hail-net work, while harvesting pedestals enable picking in mid and higher tree zones.

Reaching higher picking zones

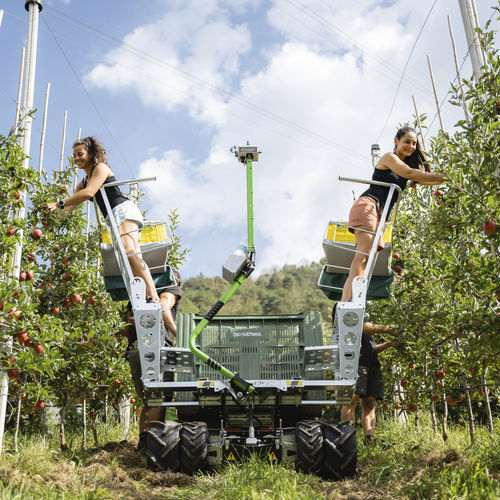

Attaching harvesting pedestals significantly increases harvesting versatility. Depending on model and slope, heights between approximately 2.30 m and 3.50 m can be reached. The pedestals can be adjusted to the respective row width, which can vary between 2.20 m and 3.50 m depending on the planting system.

Key points

• Worldwide availability
• Designed for multifunctional year-round use (harvest + maintenance)
• Reinforced construction and mounting points for attachments
• Handles heavy loads (approx. up to 600 kg) and steep slopes (up to ~40%)
• Recovering braking energy on descents to extend battery life
• Compatible with platforms (single or wide) and harvesting pedestals for extended reach

Caractéristiques / Spécifications techniques

• Engines: 2 DC motors, rated power 0.85 kW
• Gearboxes: Bevel spur gear
• Brakes: Electromagnetic
• Steering: Tank steering via joystick
• Control system: Forward and reverse travel via joystick
• Batteries: Lithium batteries, weight 7–20 kg (various capacities available)
• Charger: 5–30 A electronically regulated as standard
• Driving speed: Stepless from 0 – max. 4 km/h
• Climbing ability: Max. 20% upwards without slope compensation; max. 40% with maximum slope levelling; max. 15% side slope
• Max. load capacity: For crate transport 400 kg; on platform max. 200 kg (including persons)
• Weight: Unladen weight approx. 250 kg + 75/90 kg platform attachment (depending on model)
• Tires: 16" × 6.50 × 8 tyres inside – tractor profile 16" × 6.50 × 8 tyres outside (optional) – tractor profile; 16" × 7.50 × 8 tyres outside (optional) – garden profile
• Total length: 1.55 / 1.70 m (depending on version)
• Total width: 0.90 / 1.40 m (depending on version)
• Working Platform: Length: 0.90 m; width: 0.90 / 1.20 m (depending on version); unfolded: 1.80 / 2.20 m (depending on version); working height: approx. 1.30 m
