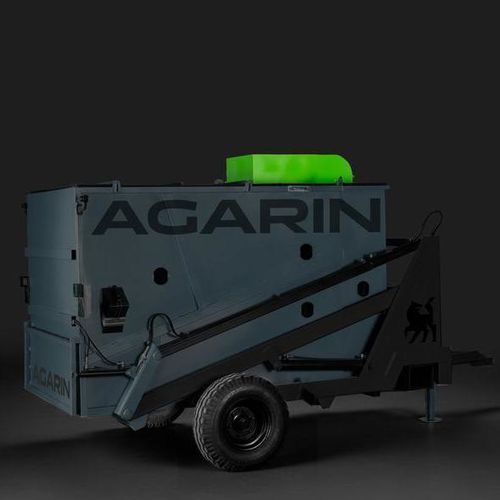

Fruit harvesting machine ASP250

towed1-rowaspiration

SummaryThe AGARÍN ASP250 series is designed for operators who need high performance over large surfaces. Its suction and screening system provides the same efficiency as the NASP3, mounted on a towed wheeled frame with a 5 m³ usable hopper, allowing much greater working autonomy. Variable discharge height and adjustable regulation enable quick and convenient unloading into trailers or containers. Machine designed for long harvesting shifts with continuous operation.

Key features

• Towed wheeled version, suitable for large extensions and continuous work.
• 5 m³ usable hopper increases autonomy and reduces unloading frequency.
• Variable discharge height adaptable to different trailer types or unloading points.
• Suitable for new agricultural plantings.
• Same suction system and double screening as the NASP3, achieving fruit cleaning above 90%.

Standard equipment

• Two-stage cleaning system
• Abrasion-resistant steel turbine
• 4 m hose with handle and wheel
• Suction regulator
• Manual top cleaning hatch
• Night lighting
• Load level sight glass

Optional equipment

• 540 rpm drive group

Characteristics / Technical specifications

• Model: ASP250
• Length (mm): 4660
• Height (mm): 2620
• Weight (Kg): 1820
• Discharge height (mm): 2600
• Hydraulic equipment: 2 double-acting
• Hose diameter (mm): 220
• Screen (mm): 7
• Suction (m3/h): 12
• PTO (rpm): 1000
• Hopper capacity (m3): 5
• Mechanical power (CV): 100
• Working width (mm): 2450
