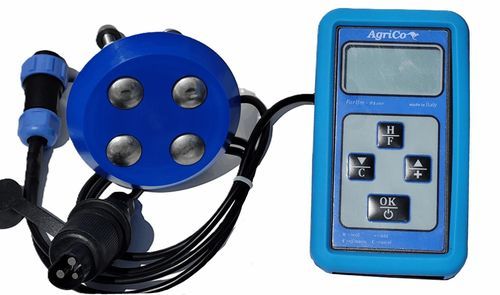

Baler mounted moisture meter Roto 01

forage

Product overview
Roto 01 is a measuring instrument that detects forage moisture in real time during baling. The device samples internally 25 times per second and displays an averaged value at a configurable interval, giving the operator a clear overview of bale moisture content. It is designed for side-wall installation on any round baler and is powered from the tractor electrical system (12 V). The system provides visual and acoustic alarms to support immediate process decisions.

Scope of delivery

• Display unit
• Mounting bracket with 2 stainless steel fixing screws
• 2 m power cable with connector
• 7 m sensor cable
• 1 sensor plate with mounting template
• 1 instruction manual

Sensor plate

• Round sensor plate made of high-strength plastic
• Outer diameter 110 mm with circumferential chamfer
• Thickness 12 mm
• Plastic insulators for single or double wall installation
• Stainless steel fixing screws, washers and nuts

Technical specifications

• Measuring range (humidity): 8.0 – 50.0 %
• Accuracy: ±1 %
• Reading speed: 0.2 s (device samples 25 times/s)
• Resolution: 0.1 %
• Alarm: visual and acoustic
• Power supply: 12 V with reverse polarity protection
• Sensor cable length: 7 m
• Display: graphic with color LED backlighting
• Sensor drilling bit: 12 mm
• Sensor material: high-strength plastic (blue/black)
• Box material: ABS + silicone
• Device weight: 400 g
• Mounting screws: M8 rounded head, stainless steel

Technical features

• Continuous internal sampling at 25 Hz for stable averaged readings
• Configurable display interval for operator needs
• Compact display unit for mounting on tractor or baler frame
• Simple installation on side wall of round balers using supplied template
• Corrosion-resistant fixing hardware for agricultural environments
