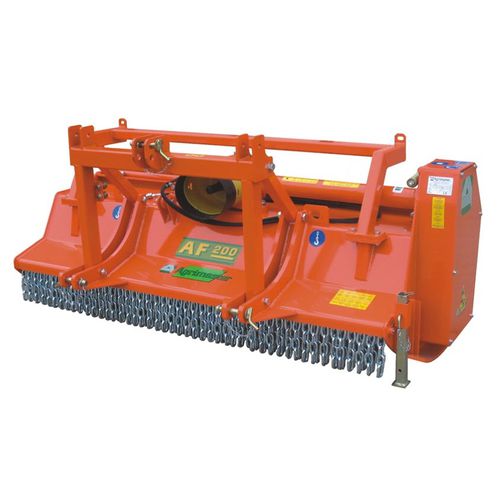

Mounted mulcher AF series
hammerforestry32 hammers

mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
forestry
Number of hammers
32 hammers, 26 hammers, 40 hammers, 46 hammers, 64 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Max.: 310 cm
(122.05 in)

Min.: 136 cm
(53.54 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 110 W
(0.1 hp)

Min.: 44 W
(0.1 hp)

Weight

Max.: 1,705 kg
(3,758.88 lb)

Min.: 750 kg
(1,653.47 lb)

Description

Forestry shredders for cleaning areas overgrown with bushes and brooms. The special feature of these machines is their capacity to cut fibrous stalks of up to 3 meters in length with great ease and to simultaneously shred woody material with maximum diameter of 14 cm. Their great capacity to adapt to the different types of undergrowth is guaranteed by a newly devised rotor with 360° rotating hammers. Standard Features Gearbox with free-wheel. Three point hitch. Single transmission for AF 130-160-200-230. Double transmission for AF 300. Height-adjustable skids. Openable bonnet with support. Hydraulic jacks for openable bonnet (only AF 300). Automatic belt tighteners. Cardan shaft. Optional accessories Branch-cutter. Hydraulic transmission with pistons-motor. Hydraulic jack for openable bonnet.
