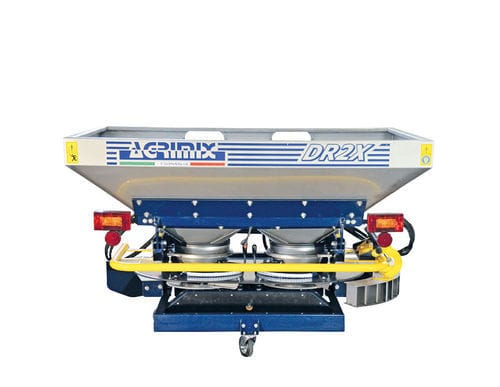

Mounted fertilizer spreader DR2X - LX

tractor-mounted3-point hitchgranular

Product name
Fertilizer spreader DR2X - LX

Available capacities

• 900 L approx.
• 1400 L approx.
• 1800 L approx.
• 2200 L approx.

Standard equipment

• Safety grille CE (mandatory for CE regulations) - STAINLESS STEEL
• Tilting hopper dim./mm 1800x1300 - STAINLESS STEEL
• High-strength boxed frame
• Quick-release hopper coupling
• Tipping and support crossmembers
• Safety guards for rotating parts (CE)
• Metering unit with truncated-cone cups and side sluice gates – STAINLESS STEEL
• Distributor discs with adjustable-angle vanes – STAINLESS STEEL
• Rear compensation levers for fertilizer drop adjustment
• Agitators for granular fertilizers – STAINLESS STEEL
• Protective covers with side guards
• Pivots for tipping, lifting and T.P. pin
• Bolting and fittings – STAINLESS STEEL
• Driveshaft with torque limiter and protection

Quantity regulation (options)

• Remote two-cable flexible control
• Hydraulic two-cylinder control
• TRONIK (electronic quantity regulation system)
• ELEKTRON SYSTEM (Electronic Spreading Control with Proportional Distribution to Forward Speed (D.P.A.E.) and electronic weighing with load cells)

Optional accessories

• Extendable vanes 12–28 m (kit 06 vanes) - Code SPC ZD243/F - RH/LH SPC ZD244/E - RH/LH
• Edge limiter - Manual - Code SPC ZD238/M
• Edge limiter - Hydraulic - Code SPC ZD238/MI
• Agitators for dusty fertilizers (pair) - Code SPC ZT174
• Rear LED light kit - Code SPC ZD321
• Rear LED light kit special - Code SPC ZD297
• Manual handling wheels kit - heavy - Code SPC ZT178/P
• Painted-sheet hopper reinforcement kit - recommended for 2200 L - Code SPC ZD190/M
• Stainless-steel hopper reinforcement kit - recommended for 2200 L - Code SPC ZD190/MX
• Tilting platform - Code SPC ZD257/M
• Stainless-steel cover with side guards - Code SPC ZD281/X
• Flexible cables L=4000 (pair) - Code SPC ZT018/X
• Hydraulic hose kit L=3500 (pair) - Code SPC ZD320
• Pilot-operated shut-off valve kit complete with hydraulic hoses - Code SPC ZT247
• Cover tarp 880 L - 1330 L - Code SPC ZD071
• Cover tarp 1740 L - 2210 L - Code SPC ZD110
• Bi-lateral stainless-steel conveyor - Code SPC ZD072/MX

Technical data (table)
Capacity | 900 L approx. | 1400 L approx. | 1800 L approx. | 2200 L approx.
Width - mm | 1800 | 1800 | 2300 | 2300
Length - mm | 1300 | 1300 | 1300 | 1300
Height - mm | 1040 | 1240 | 1340 | 1540
Empty mass - Kg | 244 | 275 | 289 | 320
Hopper capacity - L | 880 | 1330 | 1740 | 2210
Tractor hitch | CAT. 2 | CAT. 2 | CAT. 2 | CAT. 2
PTO speed (rpm) | 540 | 540 | 540 | 540

Notes
Empty mass values are indicative; weight may vary depending on added accessories.

Characteristics / technical specifications

• Series/Model: DR2X - LX
• Main materials: stainless steels for components in contact with fertilizers (hopper, metering unit, discs, bolting marked STAINLESS STEEL)
• Regulation systems: mechanical, hydraulic and electronic (TRONIK, ELEKTRON SYSTEM with D.P.A.E. and electronic weighing)
• Safety and compliance: CE guards and safety grille
• Tractor connection: quick coupling; category 2
• PTO: 540 rpm
