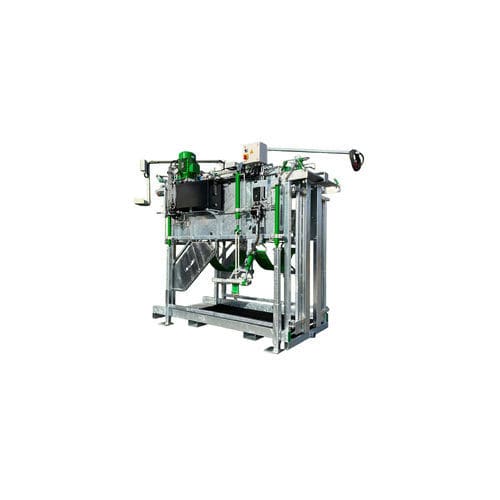

Cow squeeze chute Hydra Light

for cattlehydraulichoof-care

Overview

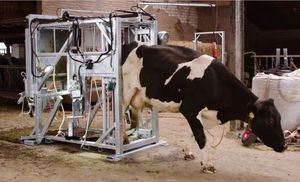

The Hydra Light cattle crush enables safe, calm and efficient preparation of cows for medical and hoof procedures while minimizing operator strain. It features a wide entrance suitable for all breeds and soft, supportive belly bands and leg supports to maximize animal comfort. Suitable beyond routine hoof care, the unit also serves as a workspace for artificial insemination, Caesarean sections and controlled medication administration.

Advanced Hydraulic Efficiency
Built from hot-dip galvanized steel, this 800 kg hydraulic crush uses a silent oil pump to drive 9 hydraulic functions, including the front gate, rear tube, dual 18 cm belly bands (750 kg lifting capacity) and front/rear leg lifts with front support pedals. The platform rests on an 18 mm rubber mat and includes a 50 cm hydraulic elevator to set an ergonomic working height. Standard power is 400V; a 230V, 4 kW motor is available on request. The workspace is equipped with three LED worklights, a rotating grinder holder with integrated power socket and two dedicated knife holders.

Key Benefits

• 360° visibility for inspection and treatment
• Ergonomic 50 cm elevator to improve operator posture
• High-capacity 750 kg belly bands
• Smooth front-gate exit for animals
• Flexible power supply options (400V standard, 230V available)

Recommended Uses

• Hoof care and trimming
• Artificial insemination
• Caesarean sections
• Precise medication administration and veterinary procedures

Technical specifications

• Construction: Hot-dip galvanized steel
• Crush rating / reference: 800 kg (as presented)
• Hydraulics: Silent oil pump powering 9 hydraulic functions (front door, back tube, etc.)
• Belly bands: Dual 18 cm, lifting capacity 750 kg
• Leg lifts: Front and back leg lifts with front support pedals
• Hydraulic elevator stroke: 50 cm (ergonomic working height)
• Rubber mat: 18 mm thickness
• Lighting: 3 LED worklights
• Accessories: Rotating grinder holder with integrated power plug; 2 dedicated knife holders
• Power supply: Standard 400V (230V, 4 kW motor available upon request)
• Entrance: Wide entrance accommodating all cow breeds
• Comfort features: Soft, supportive materials for belly bands and leg lifts
