Grain conveyor CCMC

screwmobileinclined

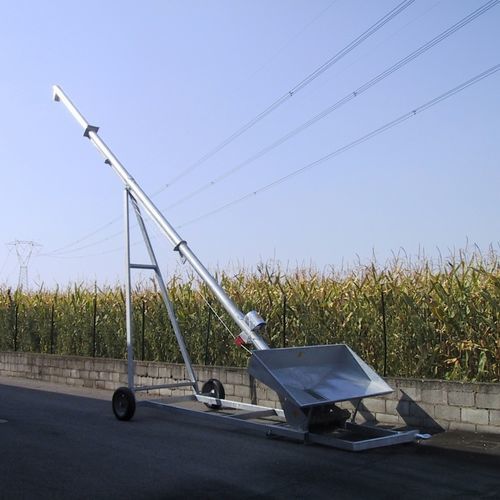

Truck screw conveyor – TYPE France – MOD. CCMC202, diameter 200 mm., Length 12 mt. produced in hot dip galvanized steel, including three-phase electric motors 380 V. 50 Hz. at the base, big receiving hopper mm. 1000 x 2000 without cover, with a reversing switch and a lifting gear. It is composed by: •Equipped with 380 V. three-phase engine, HP 10. •Carter cover engine. •Large tilt hopper, hot galvanized, mm dimensions. 1000 x 2000 with protective cage. •Switch and inverter to change the direction of rotation of the screw. •Stainless steel cable. •The last piece of the screw can be folded on a 3-metre-long cart; •3 intermediate bearings with Teflon rings to support the spiral with greaser •Telescopic drawbar. •Hitch ring to drag the screw on a carriage, 45 mm diameter. •All machines are equipped with a plate, welded on the machine itself, which allows the identification of the screw; •Assembly instructions.
