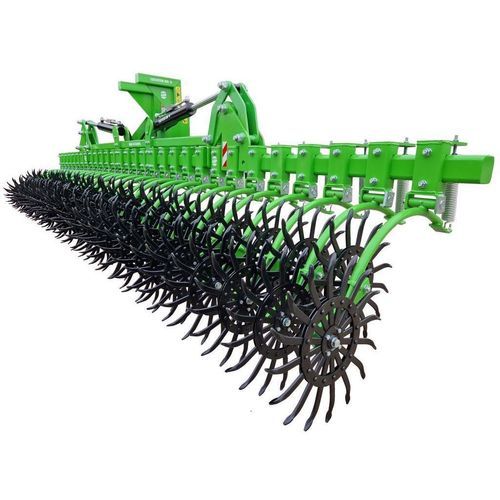

Mounted crust breaker RH series

fixedfolding

Product overview
CRUSTER rotary hoe – crust breaking machine breaks surface soil crusts that impede plant emergence and early growth. Its design allows crust breaking and shallow cultivation even at later growth stages.

Purpose of the machine

• Break surface crust
• Shallow cultivation of crops

Machine properties

• Adjustable spacing between working elements
• Adjustable pressure of working elements on the soil
• Working elements – star-shaped wheels made of high-strength, wear-resistant steel
• Side sections: manual or hydraulic lifting depending on version
• Simple handling and maintenance
• High area performance

Working principle

• Rotating star wheels break the surface crust and loosen the soil
• Intensity of crust breaking depends on ground speed — higher speed increases breaking effect
• Pressure applied by each working unit is adjusted by individual levers on the carrier

Machine versions

• RH – monoframe (non-foldable) crust breaking machines, working widths from 2.2 m to 5.8 m
• RHM – machines with manual side section lifting, working widths from 3.0 m to 5.8 m
• RHH – machines with hydraulic side section lifting, working widths 4.4 m and 6.0 m

Models table
Model | Type | Working width (mm) | Required power (min HP) | Working parts | Number of working parts (pcs) | Distance between working parts (mm)
MONOFRAME MODELS
RH 2.2 | mounted | 2200 | 40 – 70 | star-shaped wheels | 22 | 105
RH 2.6 | mounted | 2600 | 40 – 70 | star-shaped wheels | 26 | 105
RH 3.0 | mounted | 3000 | 40 – 70 | star-shaped wheels | 30 | 105
RH 3.4 | mounted | 3400 | 40 – 70 | star-shaped wheels | 34 | 105
RH 3.8 | mounted | 3800 | 50 – 75 | star-shaped wheels | 38 | 105
RH 4.2 | mounted | 4200 | 60 – 80 | star-shaped wheels | 42 | 105
RH 4.6 | mounted | 4600 | 60 – 80 | star-shaped wheels | 46 | 105
RH 5.0 | mounted | 5000 | 60 – 80 | star-shaped wheels | 50 | 105
RH 5.4 | mounted | 5400 | 70 – 90 | star-shaped wheels | 54 | 105
RH 5.8 | mounted | 5800 | 70 – 90 | star-shaped wheels | 58 | 105
MODELS WITH MANUAL SIDE SECTION LIFTING
RHM 3.0 | mounted | 3000 | 40 – 70 | star-shaped wheels | 30 | 105
RHM 3.4 | mounted | 3400 | 40 – 70 | star-shaped wheels | 34 | 105
RHM 3.8 | mounted | 3800 | 50 – 75 | star-shaped wheels | 38 | 105
RHM 4.2 | mounted | 4200 | 60 – 80 | star-shaped wheels | 42 | 105
RHM 4.6 | mounted | 4600 | 60 – 80 | star-shaped wheels | 46 | 105
RHM 5.0 | mounted | 5000 | 60 – 80 | star-shaped wheels | 50 | 105
RHM 5.4 | mounted | 5400 | 70 – 90 | star-shaped wheels | 54 | 105
RHM 5.8 | mounted | 5800 | 70 – 90 | star-shaped wheels | 58 | 105
MODELS WITH HYDRAULIC SIDE SECTION LIFTING
RHH 4.4 | mounted | 4400 | 60 – 90 | star-shaped wheels | 44 | 105
RHH 6.0 | mounted | 6000 | 70 – 100 | star-shaped wheels | 60 | 105

Image gallery (representative images shown on product page)
Several photos and generation variants of RH / RHM / RHH models are displayed on the product page.

Video
Promotional and demonstration videos are available (showing the CRUSTER in operation).

Specifications / technical data

• Commercial name / model: CRUSTER
• Available model families: RH (monoframe), RHM (manual side lifting), RHH (hydraulic side lifting)
• Working widths: from 2.2 m up to 6.0 m depending on model
• Required power: typical range 40 – 100 HP depending on model and working width
• Working parts: star-shaped wheels made of high-strength, wear-resistant steel
• Number of working parts: varies by model (approx. 22 to 60 pcs)
• Distance between working parts: 105 mm (standard)
• Side sections: manual or hydraulic lifting depending on version
• Adjustable pressure of working parts on soil and adjustable spacing between working parts
