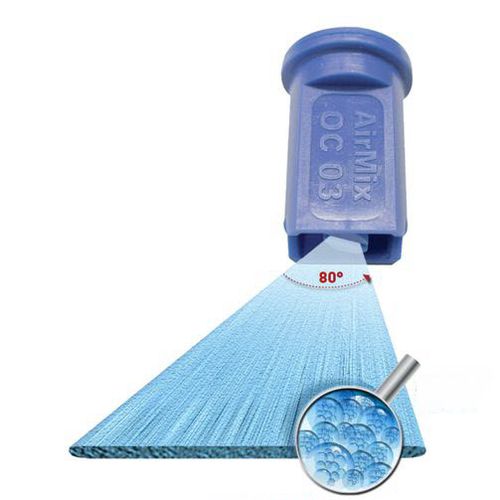

Plastic nozzle AirMix® OC

off-center flat fanVenturi

Low pressure off-centre flat fan venturi nozzle made from hard-wearing plastic POM Characteristics -Two-piece design, no tools required for opening -Air cleaning system, no plugging of air entrance -High drift reduction -Wide application range -Same flow rate as corresponding flat fan nozzle -Suitable as end nozzle on booms in combination with AirMix® flat fan nozzles Fits in caps with spanner width of 8 mm, commonly used on most sprayers Practical tips AirMix® OC as end nozzle In connection with AirMix® 110° flat fan nozzles AirMix® OC off-centre nozzles can be used as end nozzles for a sharp-edged differentation of the spraying rods. Therefore instead of an einer AirMix® 110° an AirMix® OC is used as end nozzle each time. To reach an optimum lateral distribution we recommend two variants : 1. Use in the outside nozzle holder instead of the last nozzle with long stream arm to the inside. Within this you should take the AirMix® OC one size smaller than the AirMix® 110° in the rods (e.g. for AirMix® 110-04 theAirMix® OC -03 as end nozzle, because the working width of OC nozzles is a little bit smaller). 2. For comparison: Overspraying at the field edge when used as a end nozzle.
